KAWASAKI ZX10 11'+ REAR QUICK CHANGE KITS

KAWASAKI ZX10 11'+ REAR QUICK CHANGE KITS

$1,690.00
$1,690.00
Sale Sold out

Kawasaki ZX10R (2011+) Rear Quick Change Kit

The Fast Frank Racing Rear Quick Change Kit for the Kawasaki ZX10R (2011+) is engineered for faster, easier, and more secure wheel changes — built to perform at the highest levels of competition.

Kit Components

  1. 17-4 Stainless Steel Left-Handed (CNC-Machined) Axle

  2. Captive Custom Left-Handed Axle Nut

  3. Lightech Chain Adjusters

  4. Axle Pull Cup

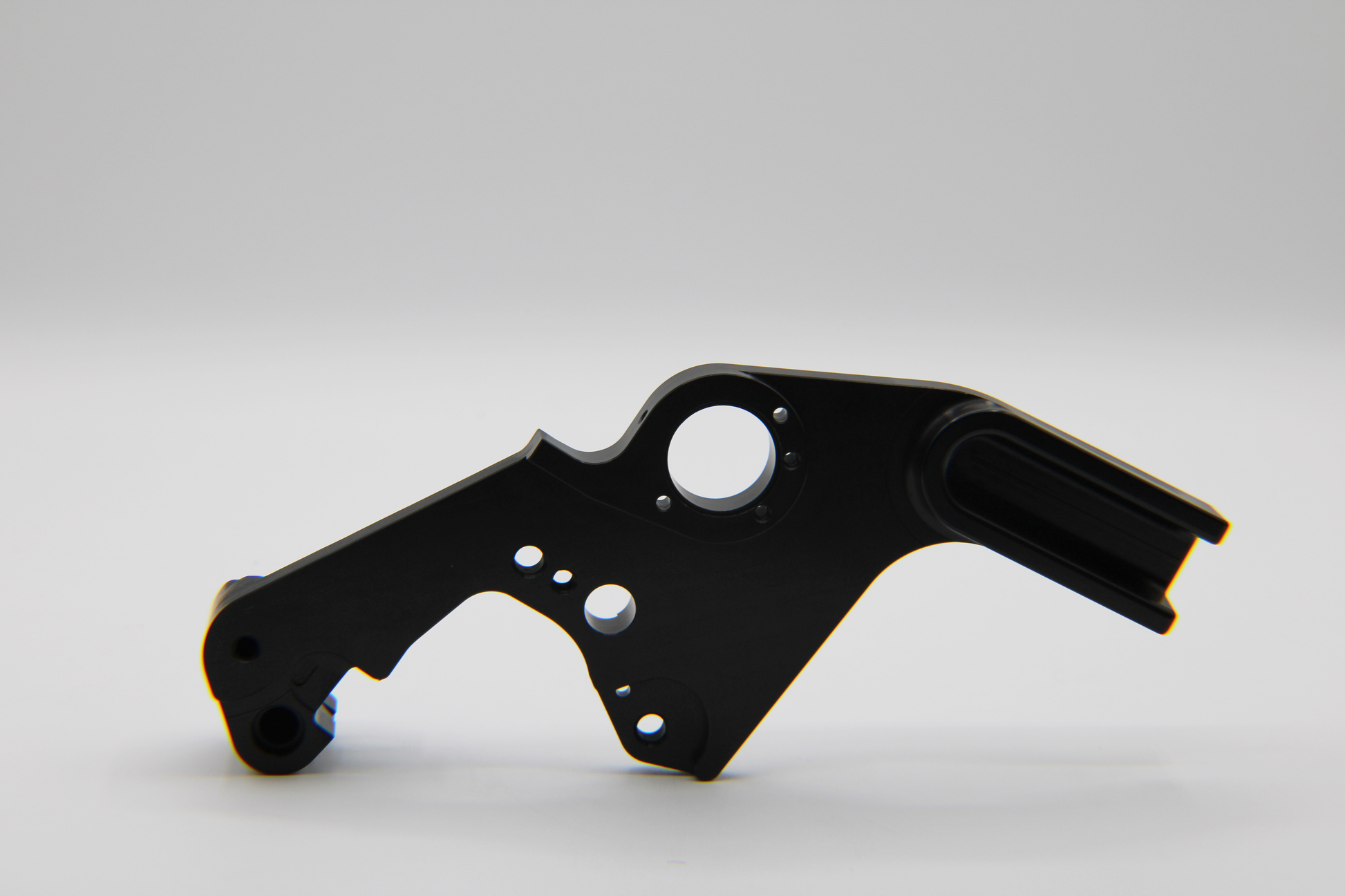

  5. Captive Caliper Bracket (or optional Underslung Caliper Bracket)

  6. Left-Side Lightech Wheel Ramp

  7. Right Caliper-Bracket Wheel Guide

  8. Ramp Spacers (1 set included; additional sets available separately)

  9. Detachable Axle Guides

Optional Upgrade – Underslung Caliper Bracket

For even faster wheel changes, choose our Underslung Caliper Bracket, which uses the stock brake caliper and enhances ac

View full details

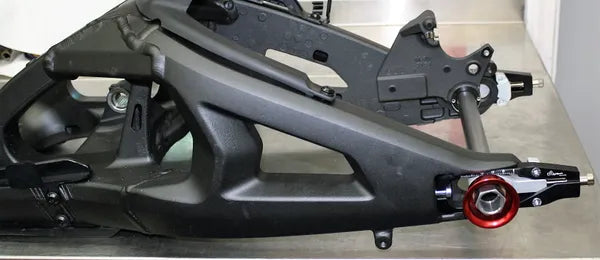

FAST FRANK RACING KAWASAKI ZX10R 11-21' REAR QUICK CHANGE WITH LIGHTECH ADJUSTERS

We recently redesigned this kit so that now the axle nut is what holds the caliper bracket captive to the swingarm,

this design makes the caliper bracket much more rigid and is easier to install.

(note that some of the pictures show our under mount caliper bracket, the under mount caliper bracket is an optional extra)


This kit features a CRN Coated CNC machined axle with coarse left hand threads and axle pull cup.

Comes with Lightech chain adjusters, captive axle nut, captive caliper bracket and Left side wheel guide and 1 set of captive wheel spacers (the left side spacer is specific for use with the left side wheel guide)

 The ramp requires the use a 520 sprocket and cut sprocket studs flush with the sprocket nuts



Pull Cups are available in  Blue, Black, silver and red

If  you are using a Pitbull trailer restraint system it will work with this quick change axle, but You will need to order a specific set from Pitbull, Use Part  #25x320-V4
