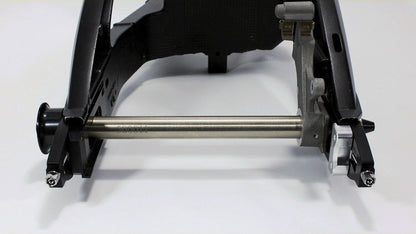

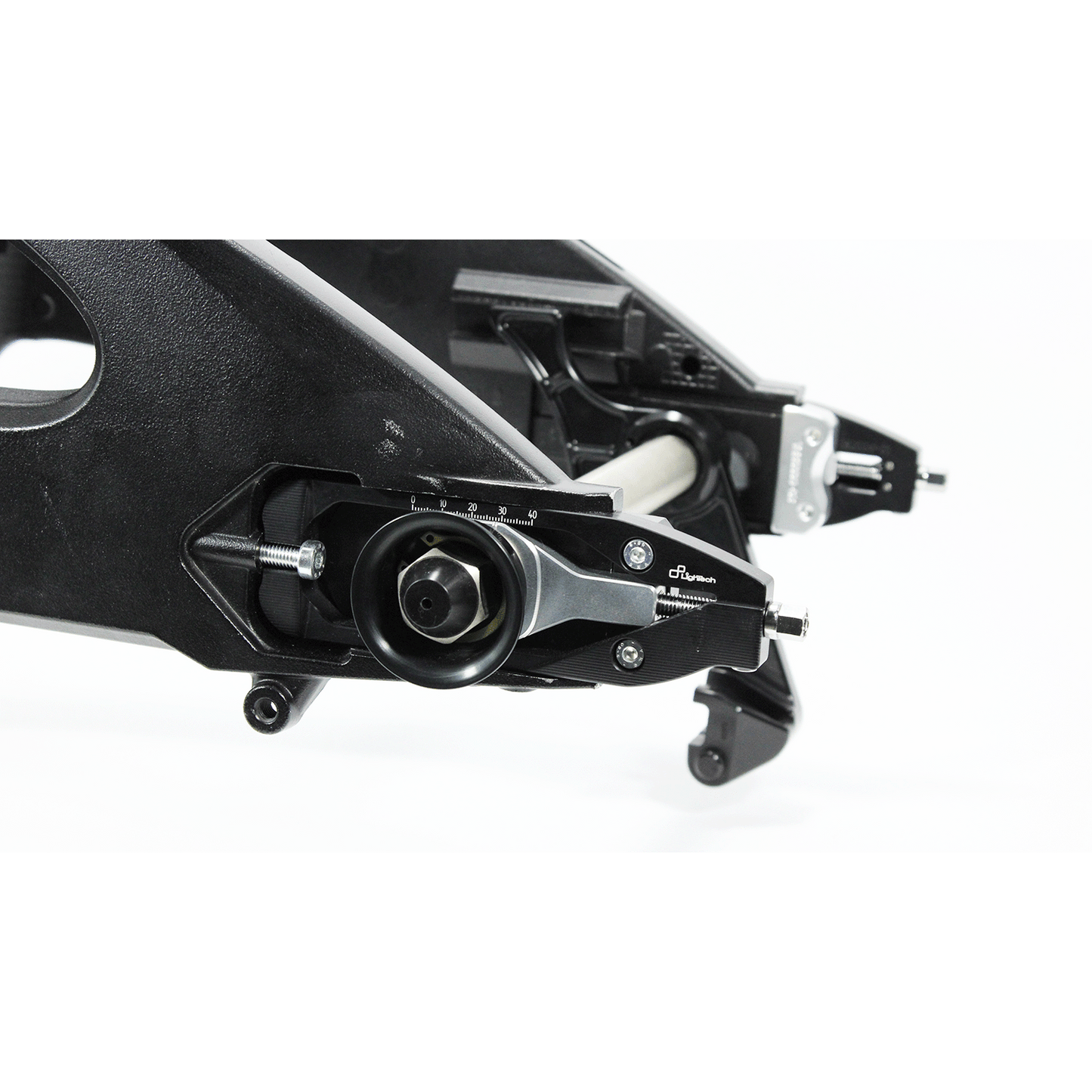

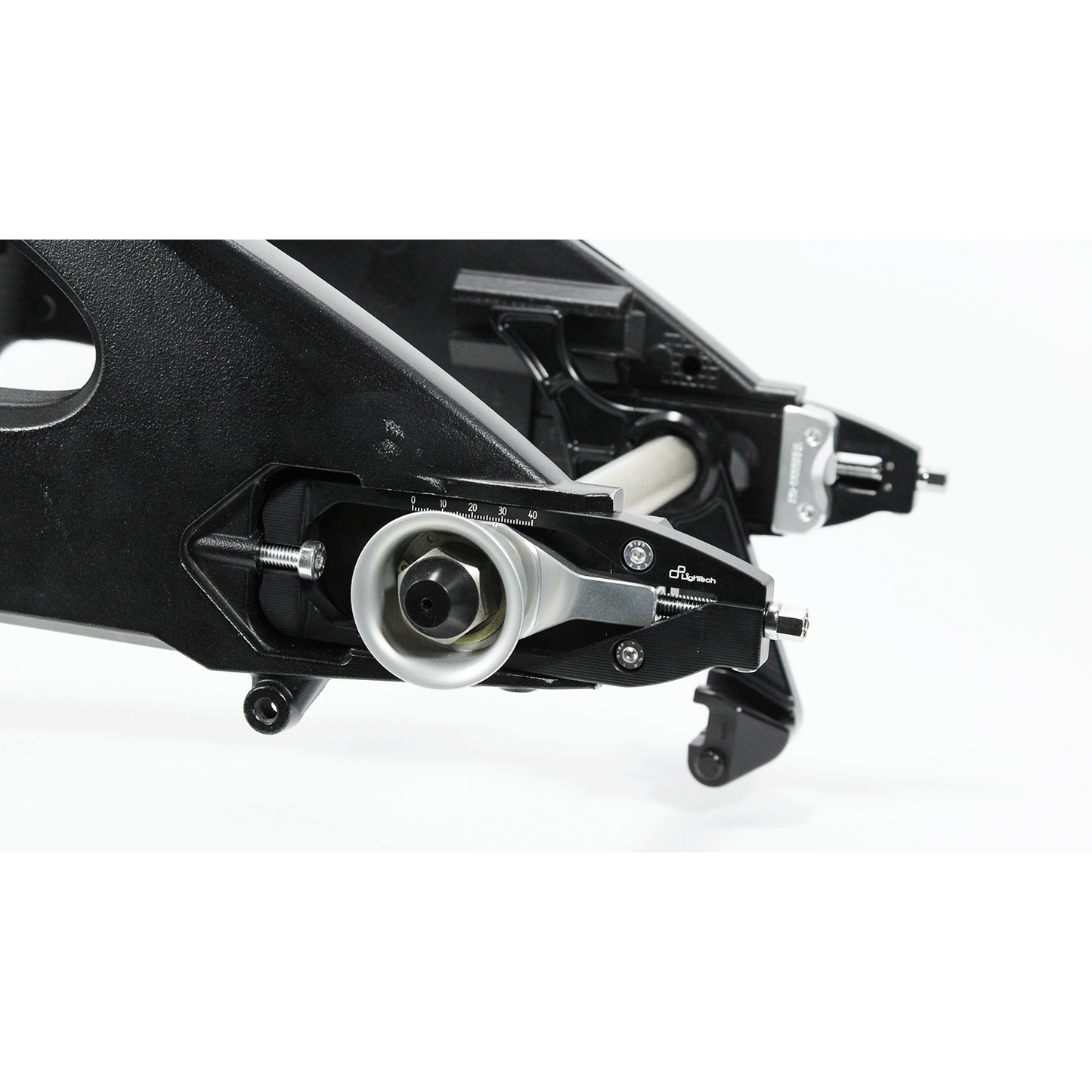

SUZUKI GSXR600/750 11'+ REAR QUICK CHANGE KITS

Suzuki GSXR 600/750 (2011'+) Rear Quick Change Kit

The Fast Frank Racing Rear Quick Change Kit for the Suzuki GSXR600/750 (2011'+) has been designed for faster, easier, and more secure wheel changes — built to perform at the highest levels of competition.

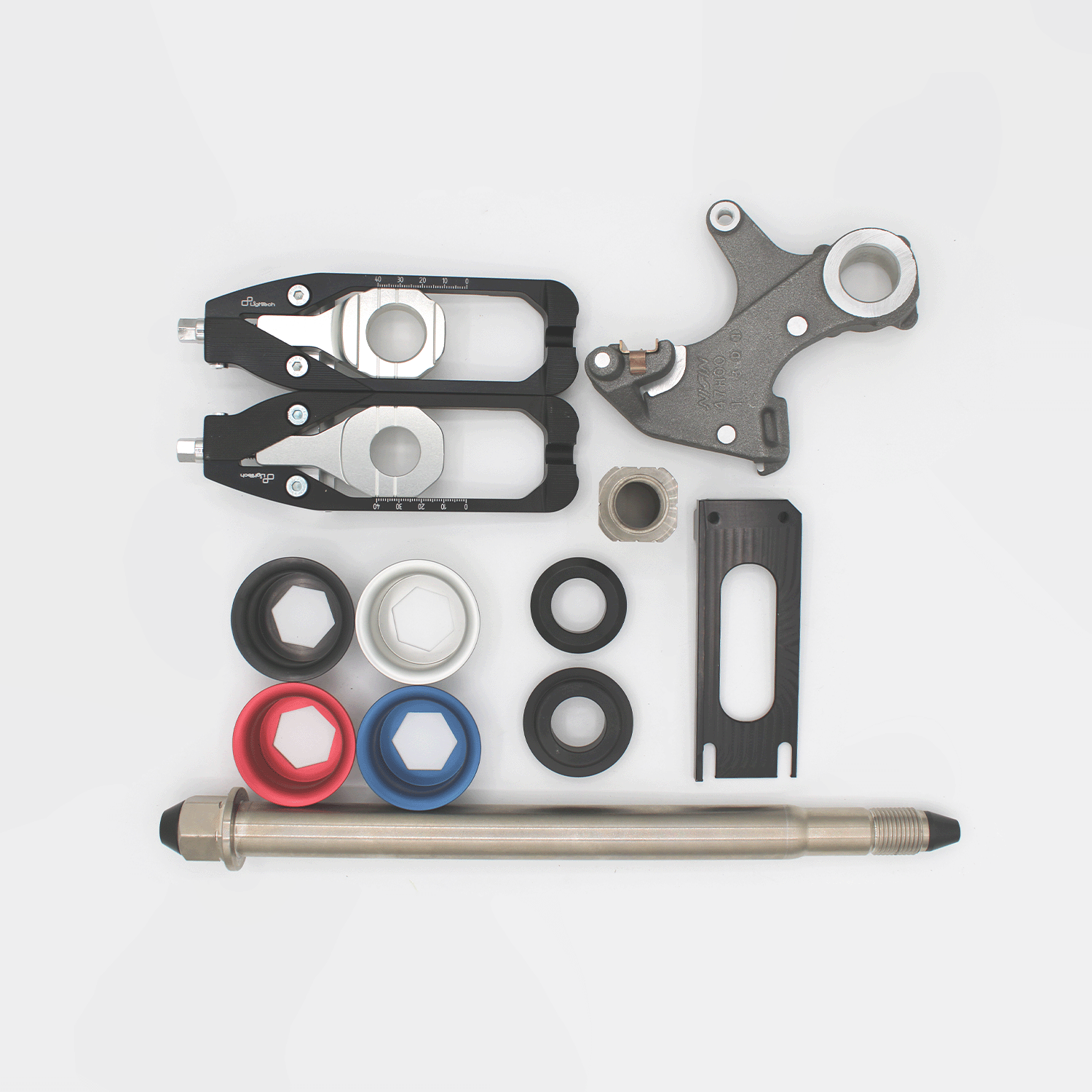

Kit Components

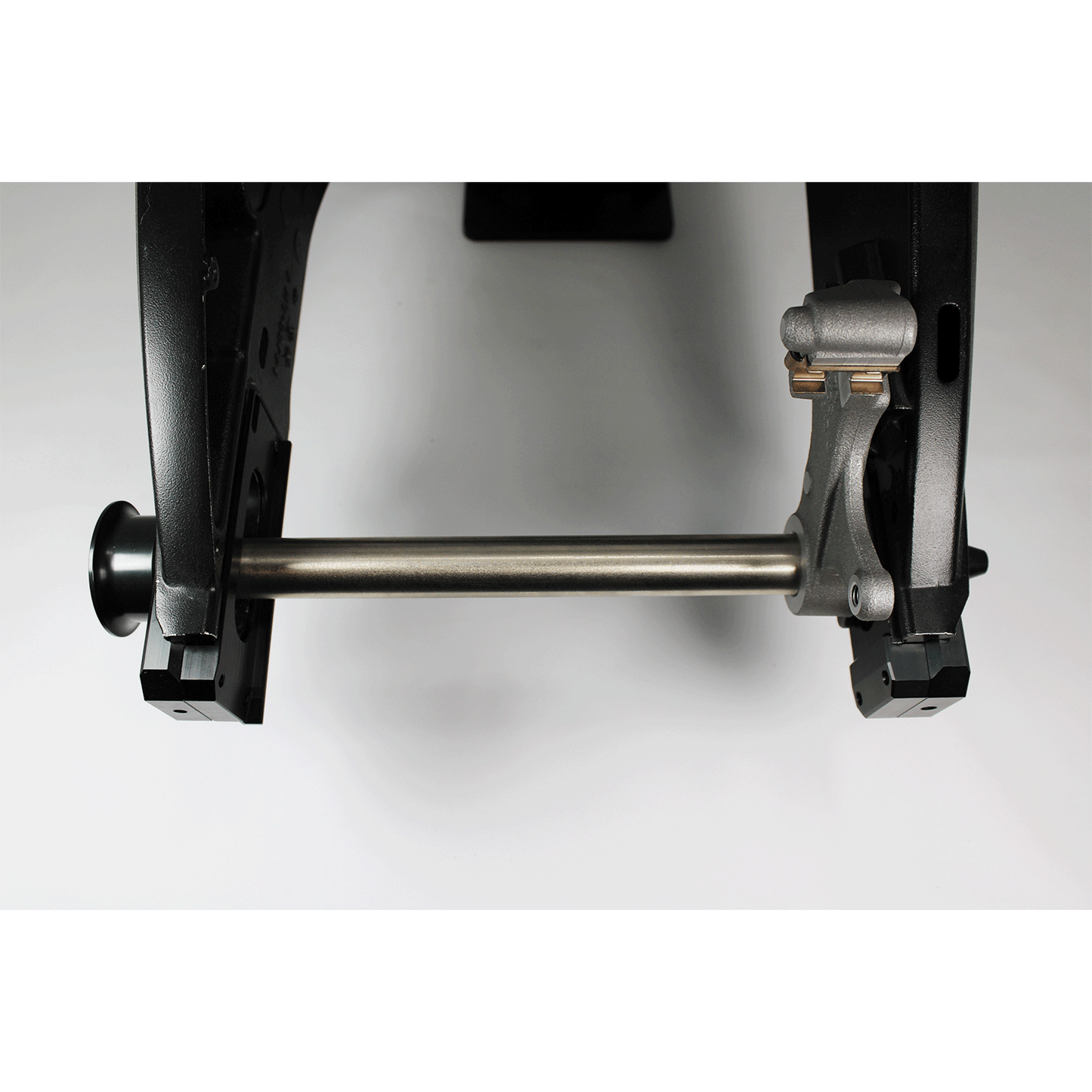

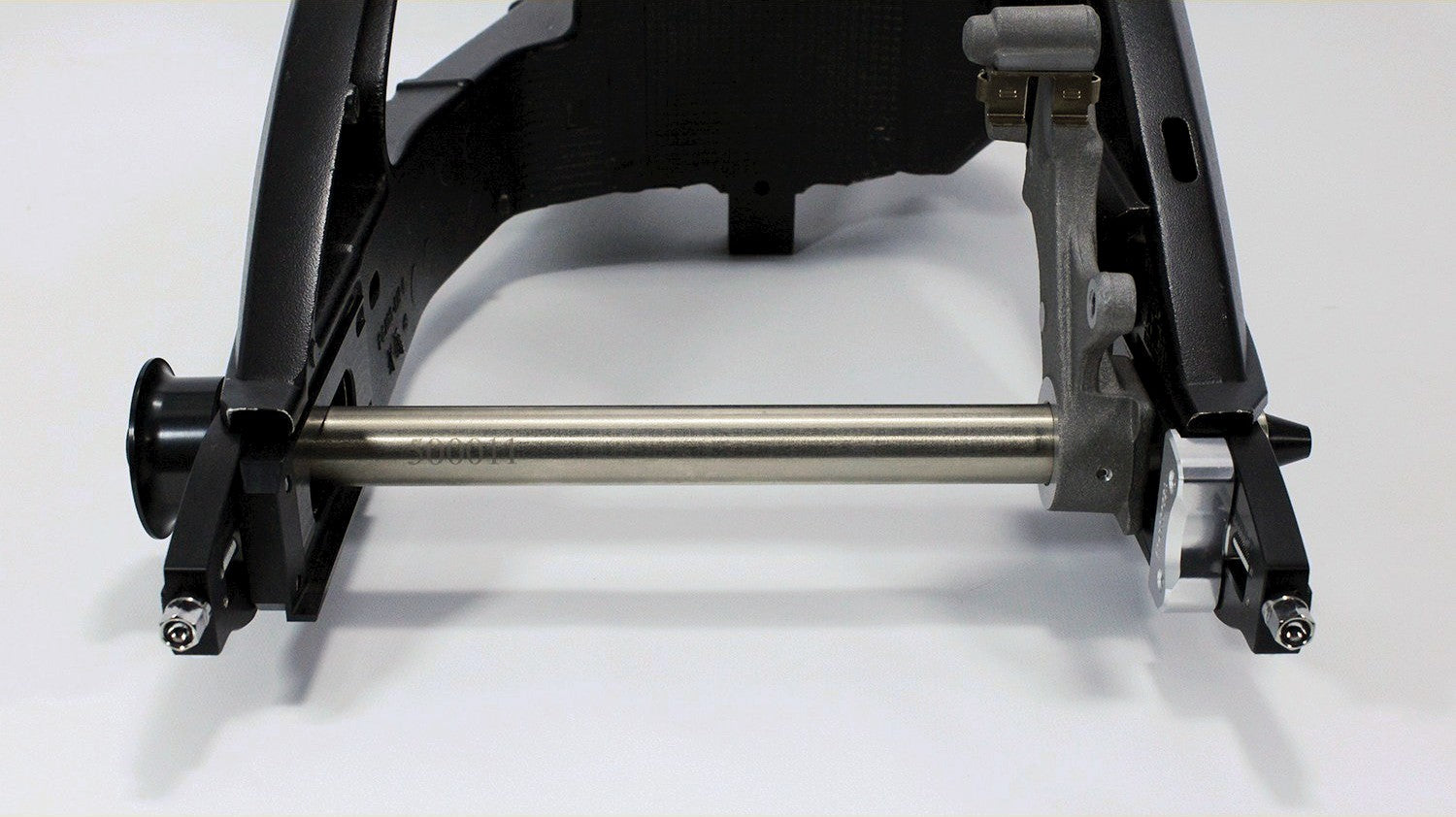

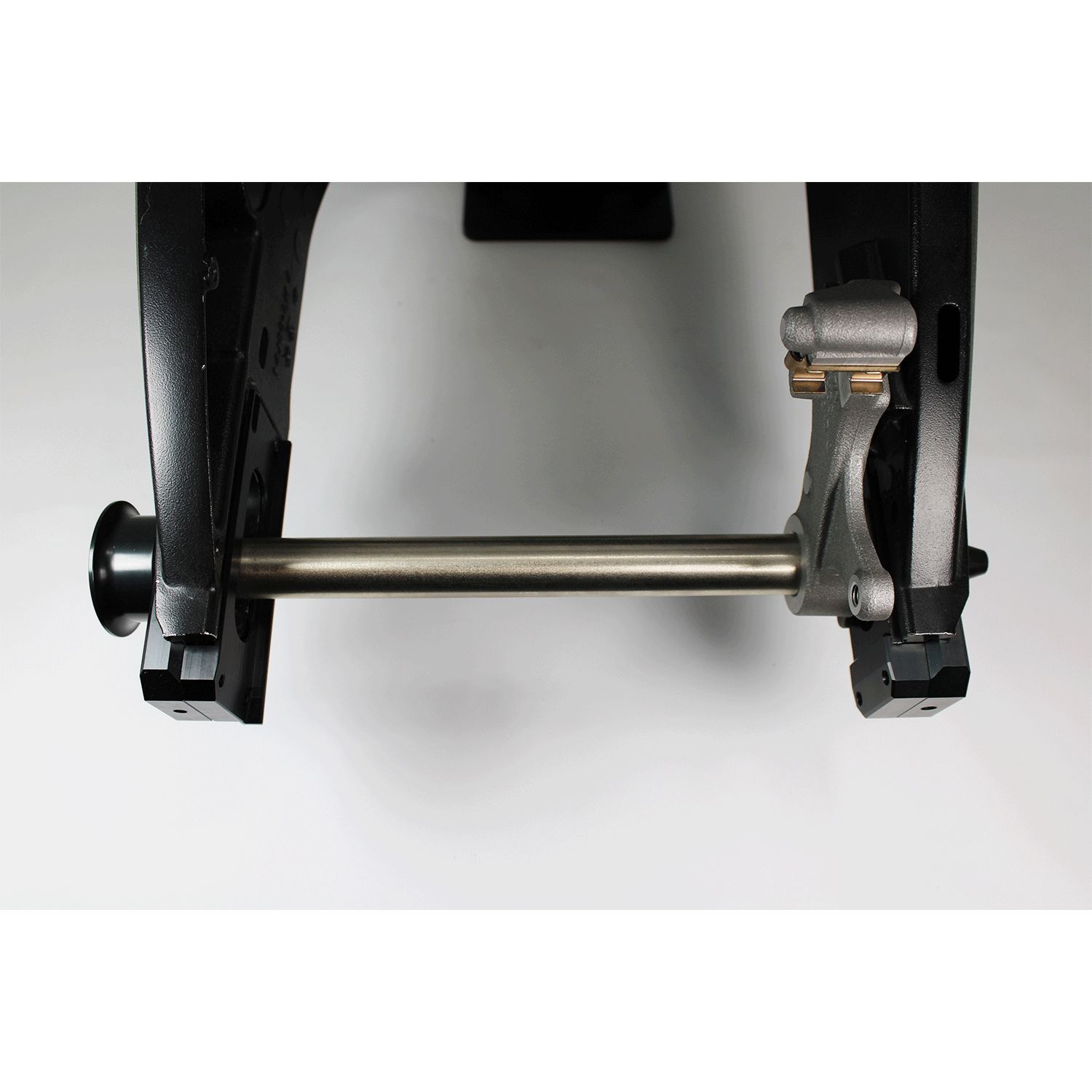

1. 17-4 Stainless Steel Left-Handed (CNC-Machined) Axle

2. Captive Custom Left-Handed Axle Nut

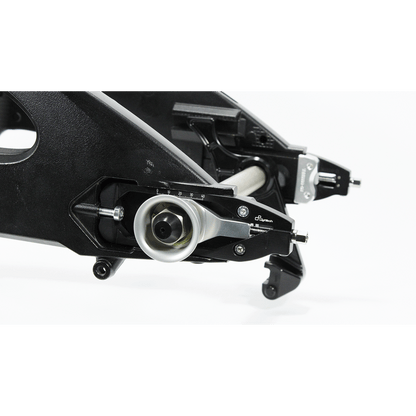

3. Lightech Chain Adjusters

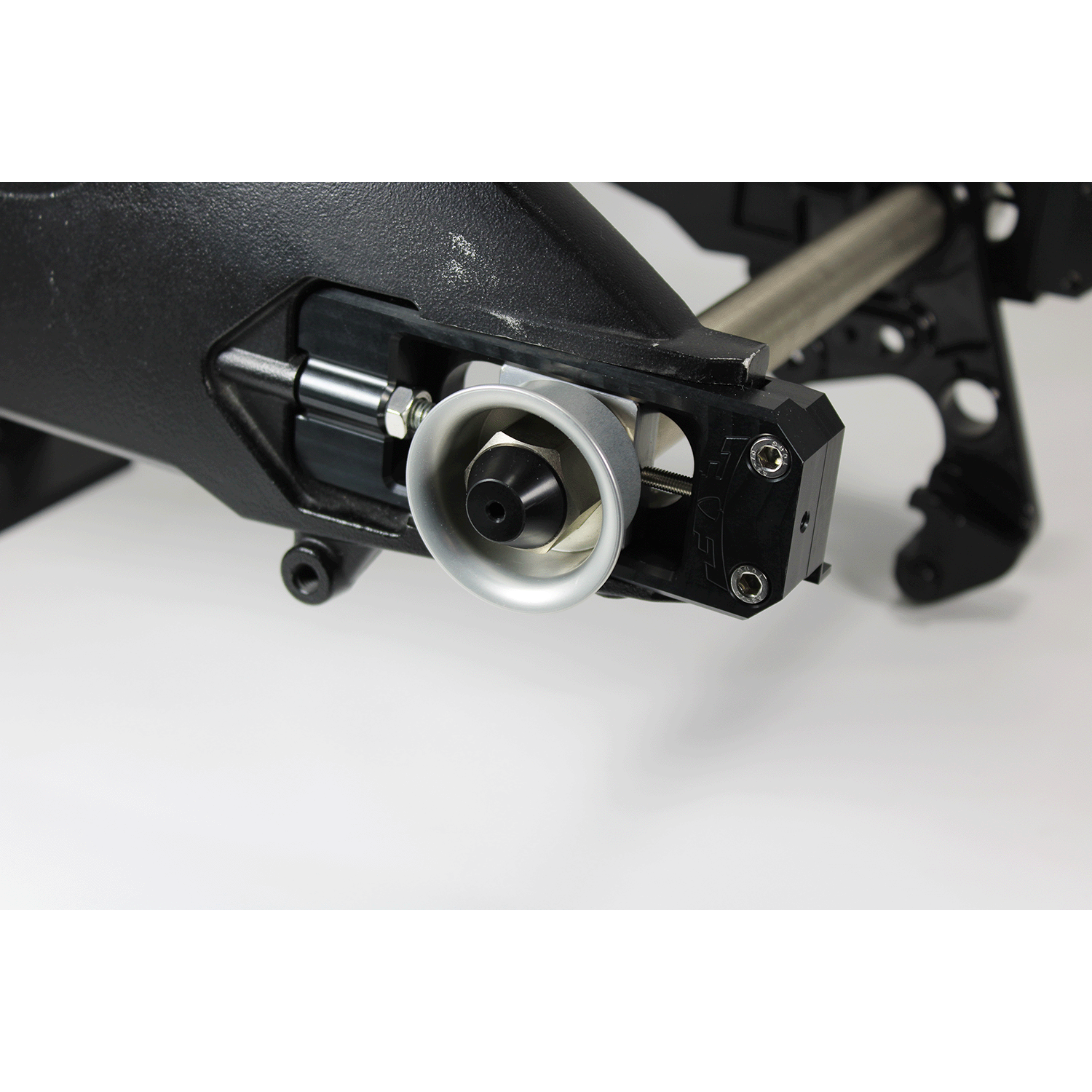

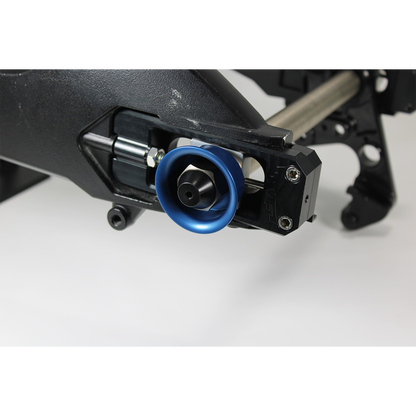

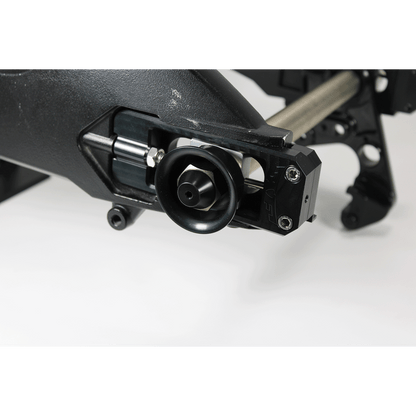

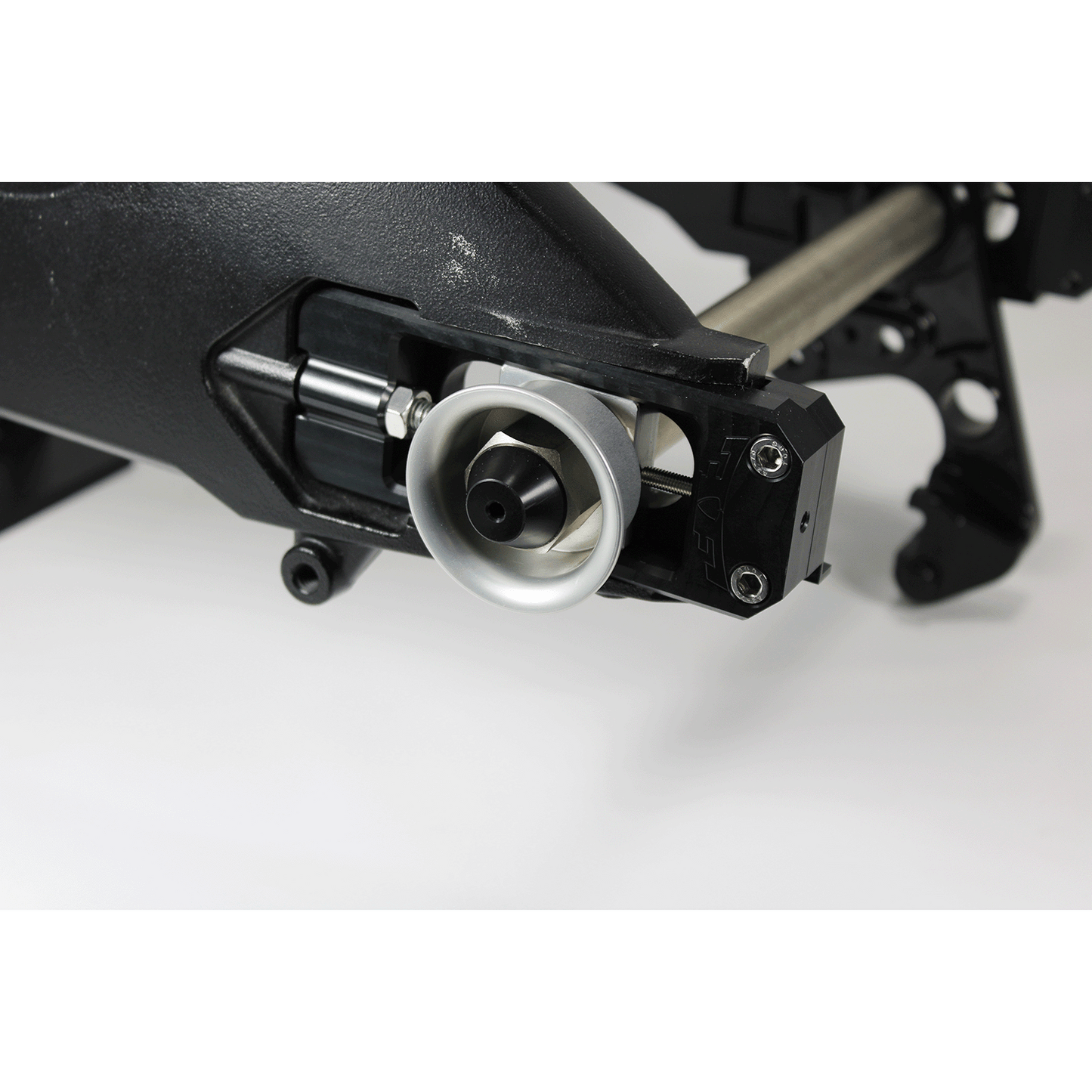

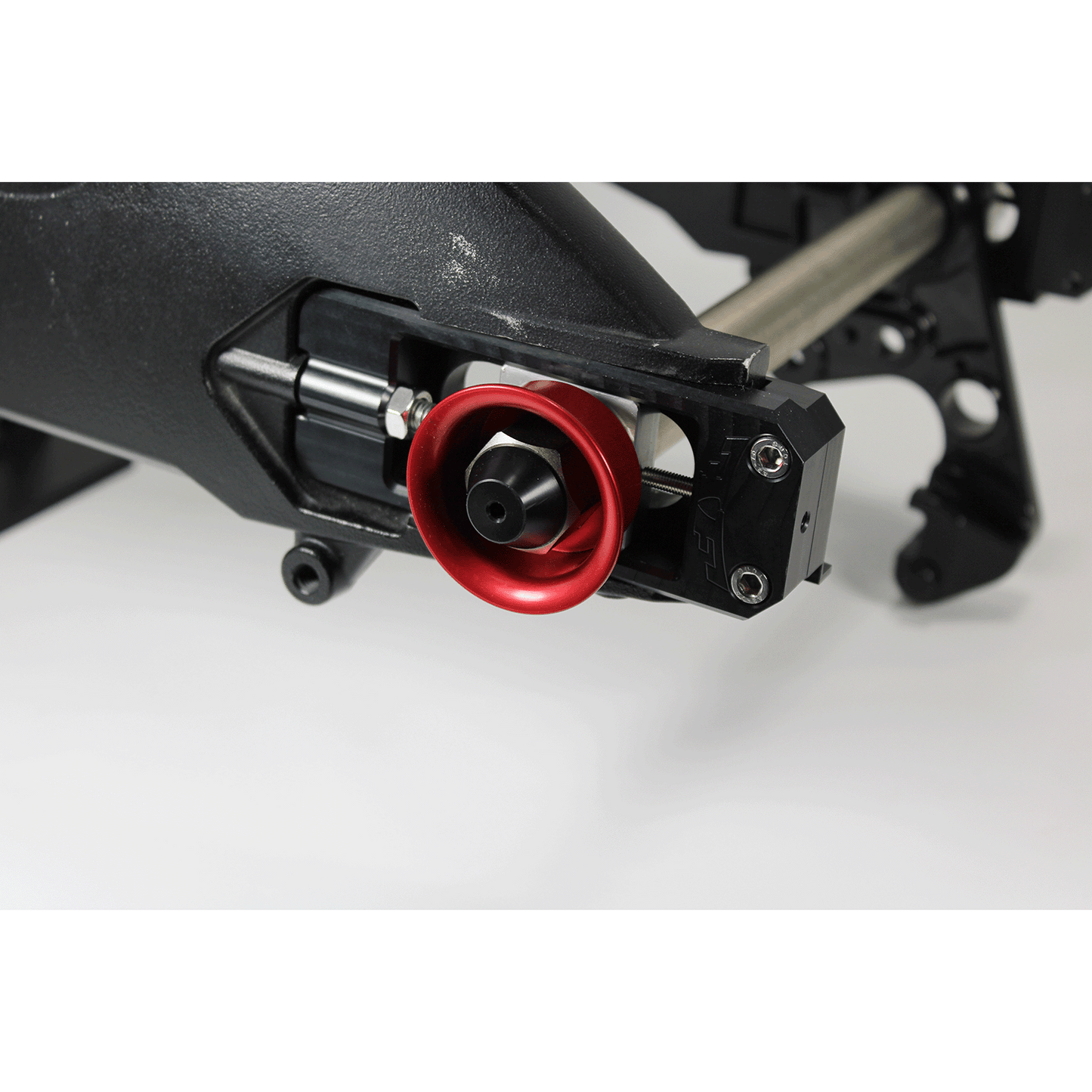

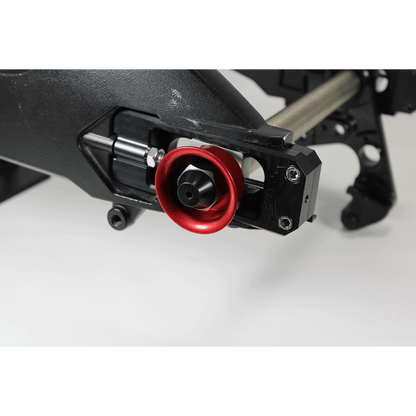

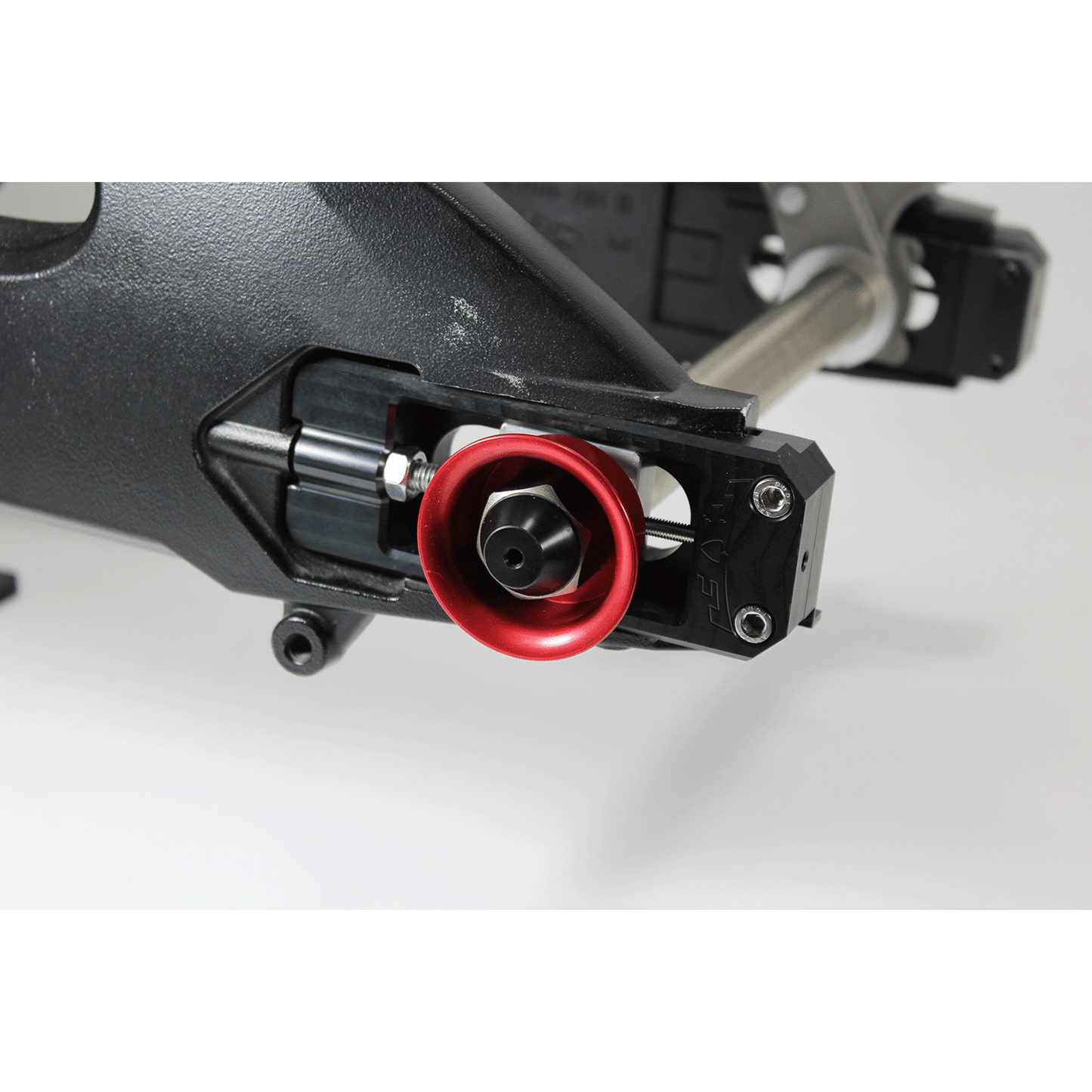

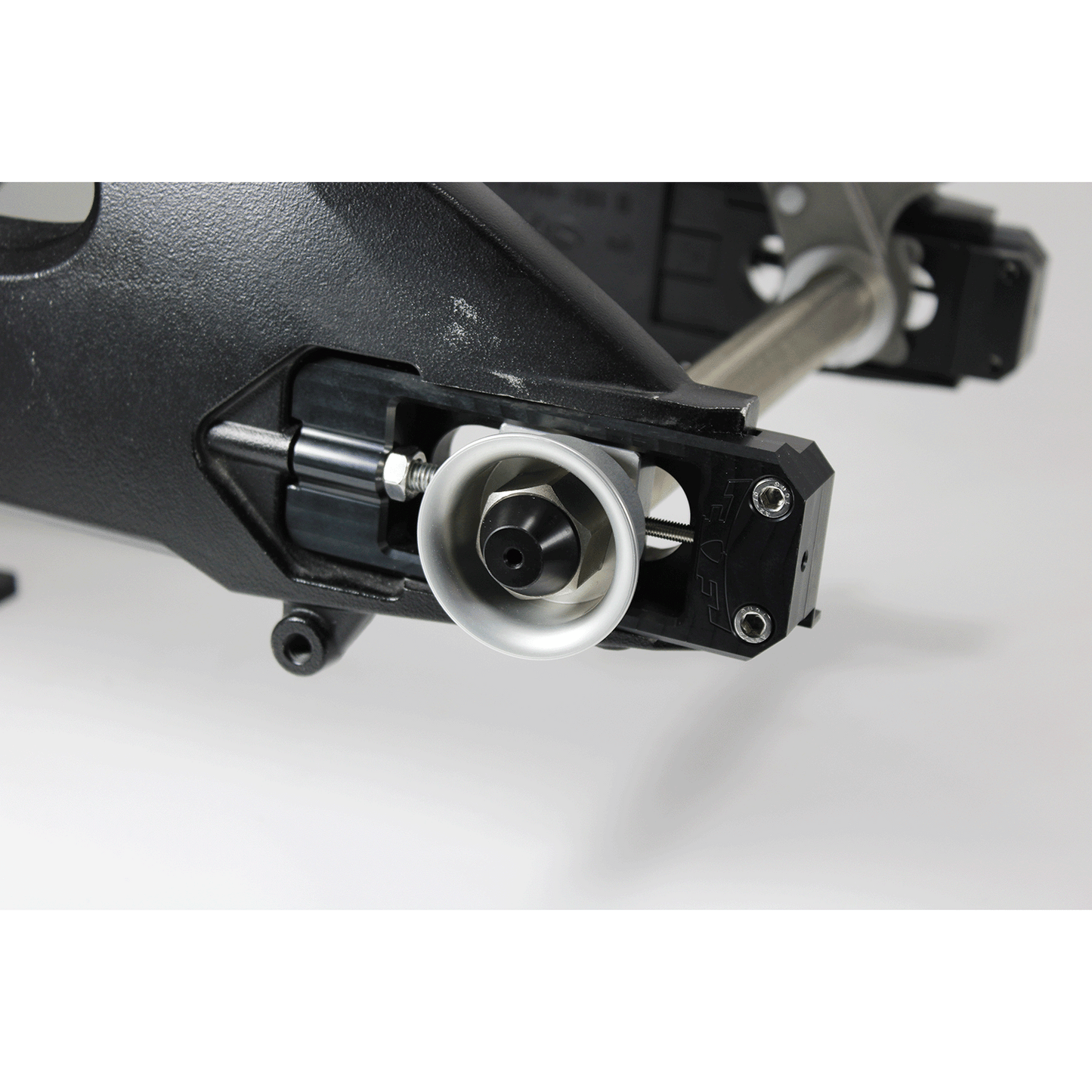

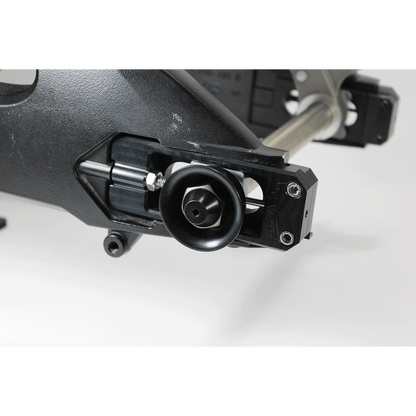

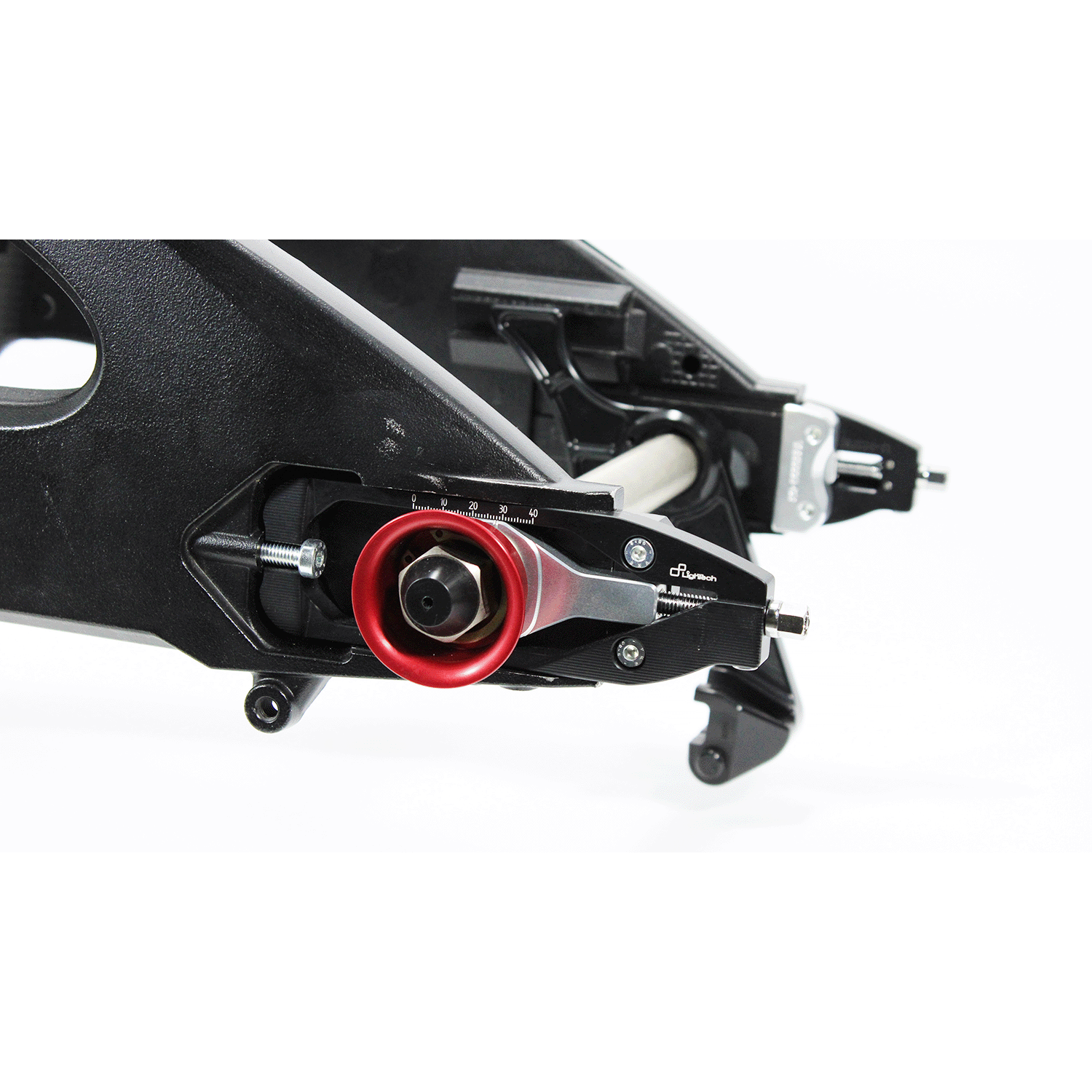

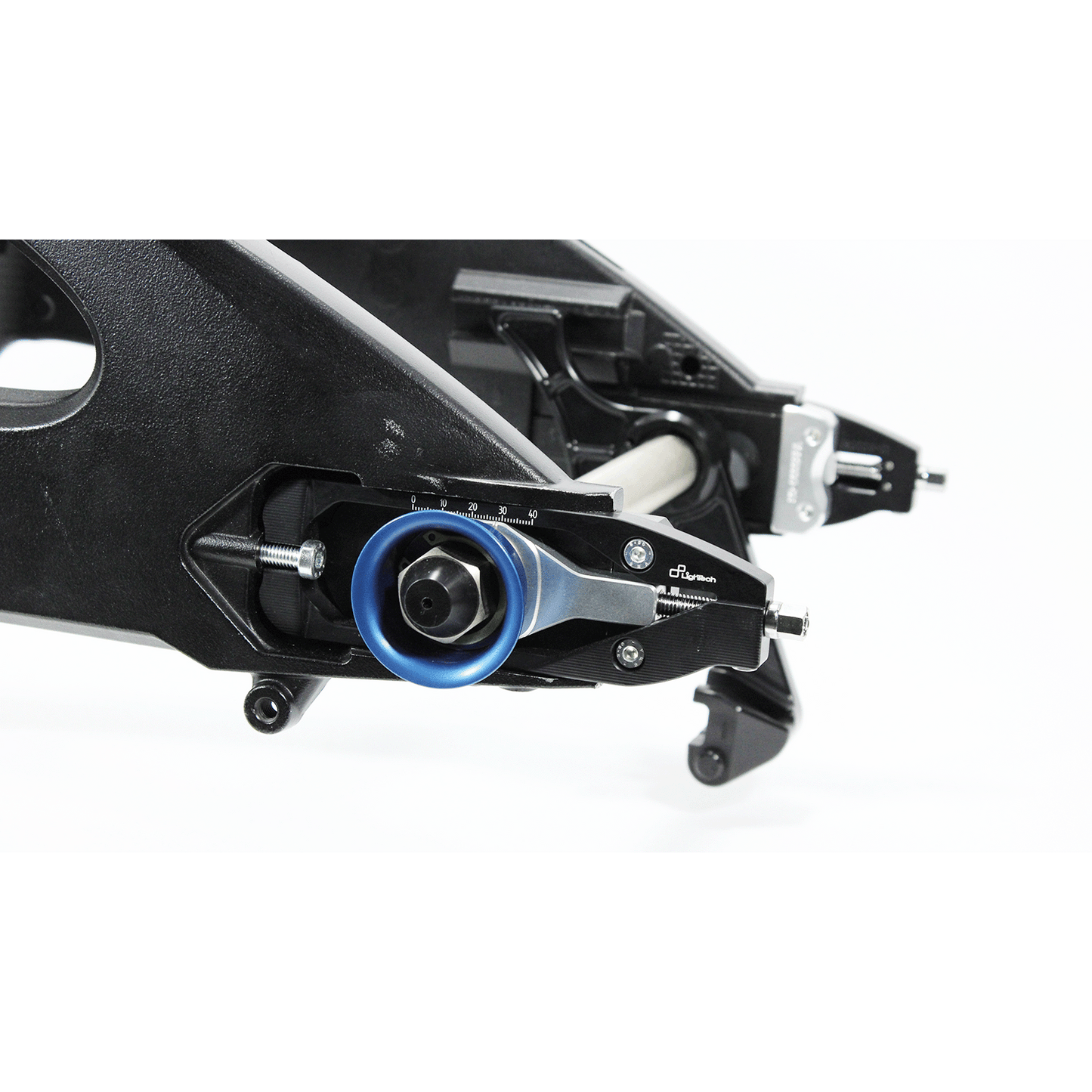

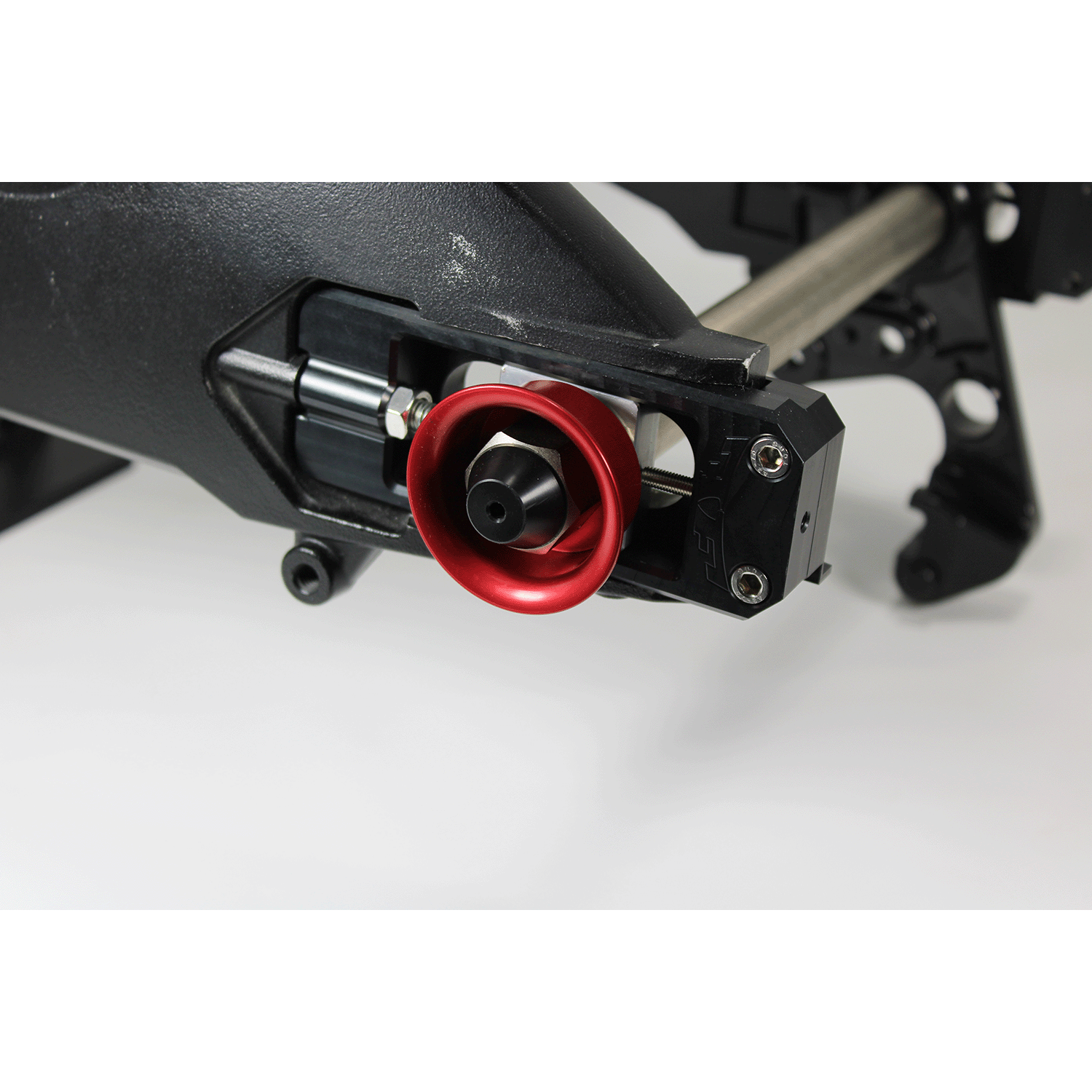

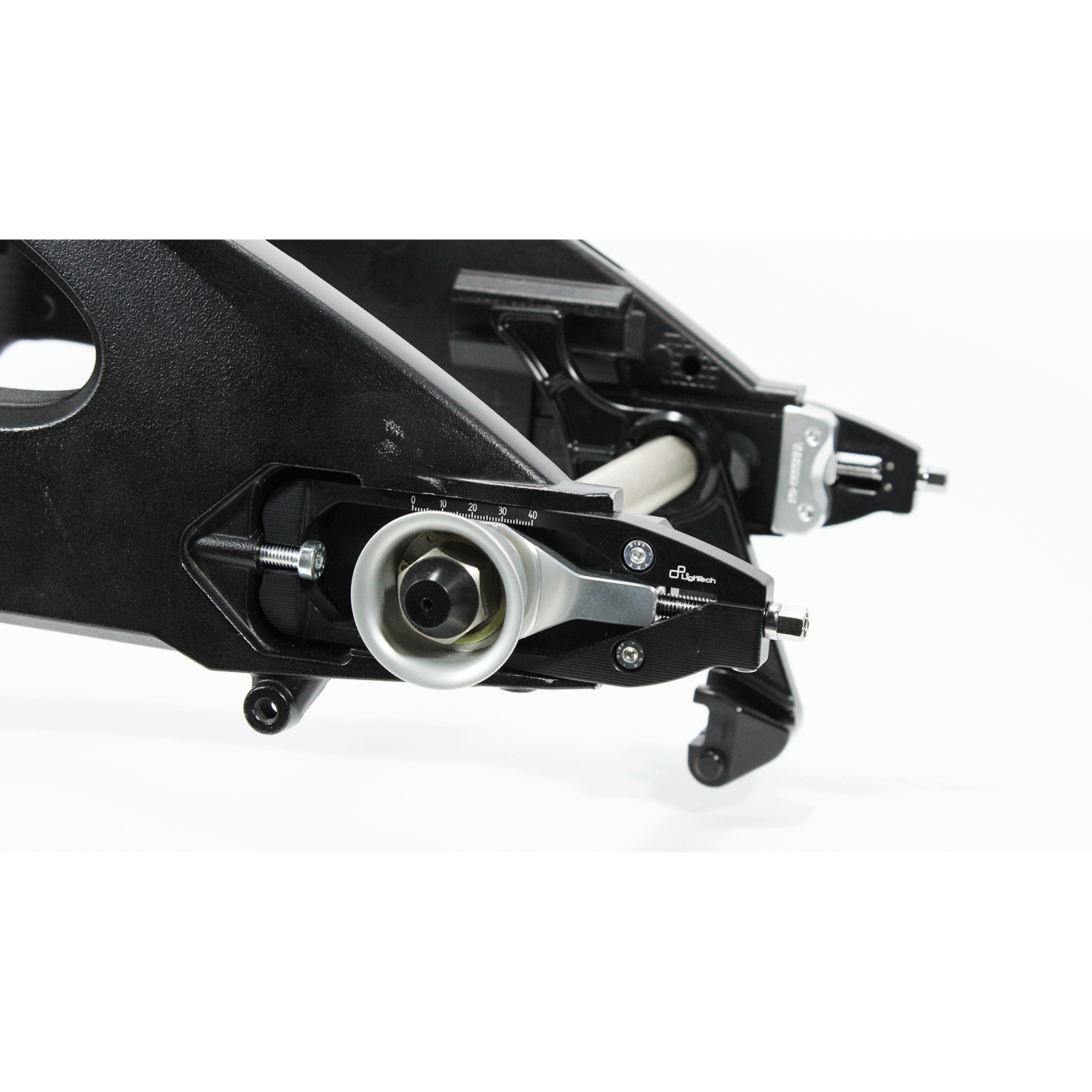

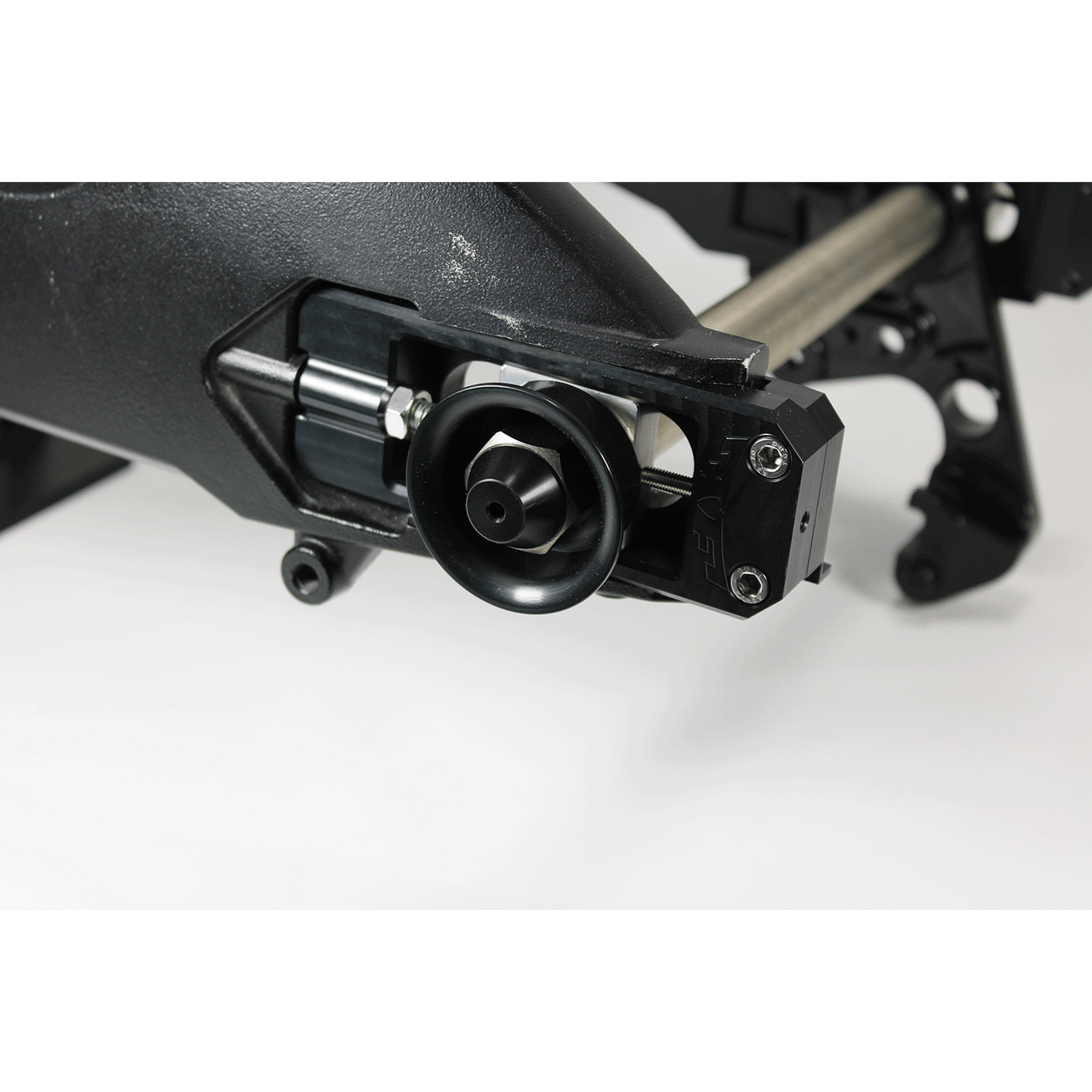

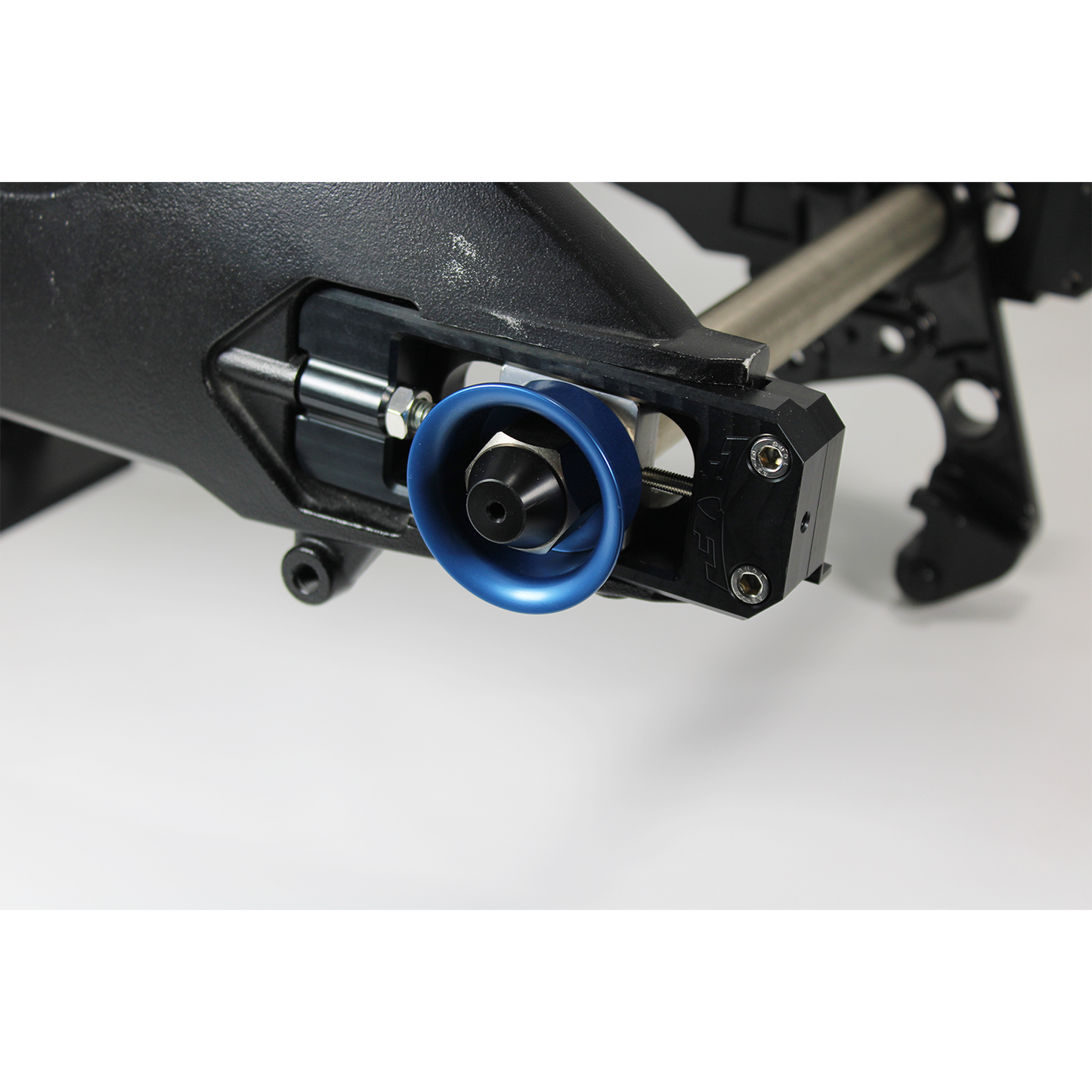

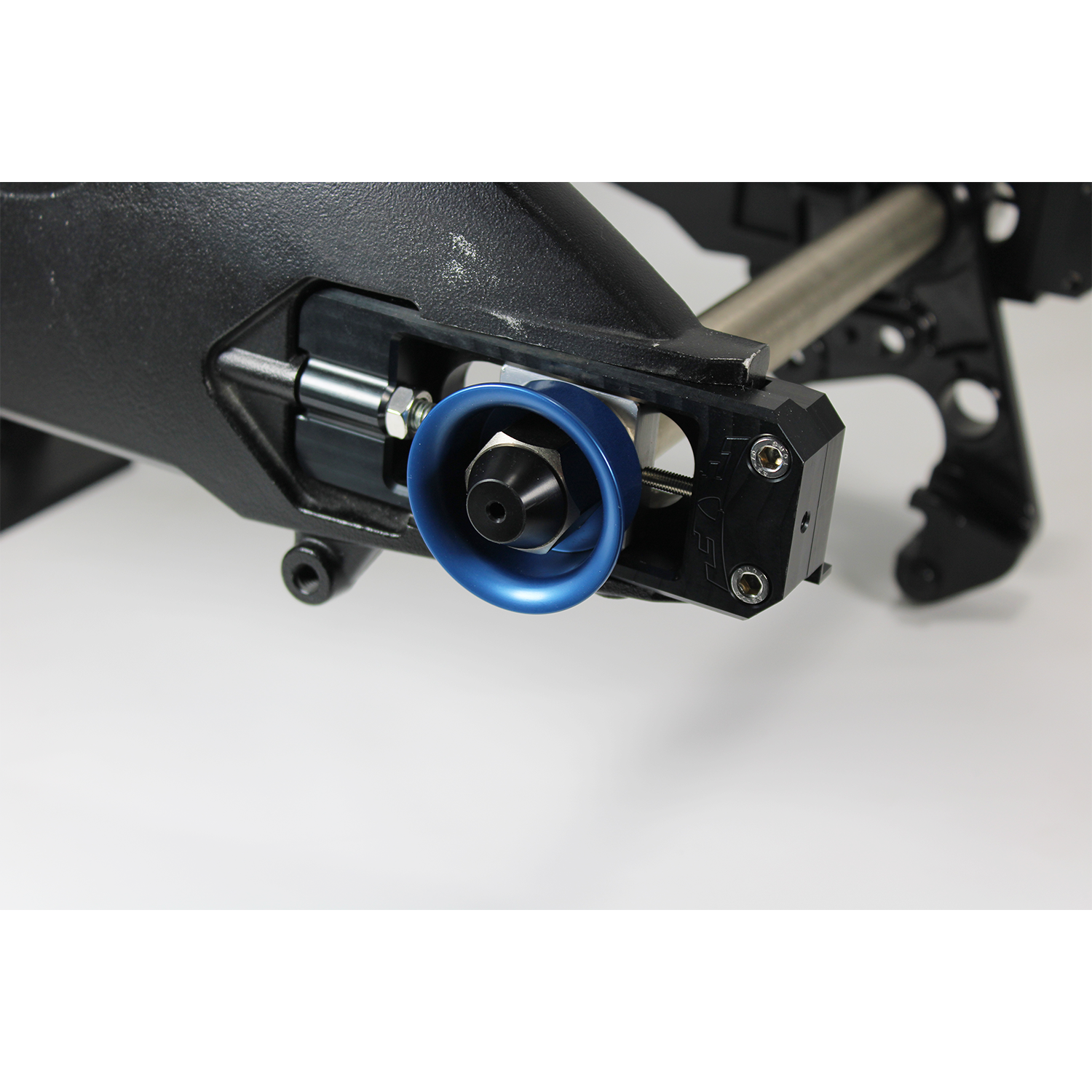

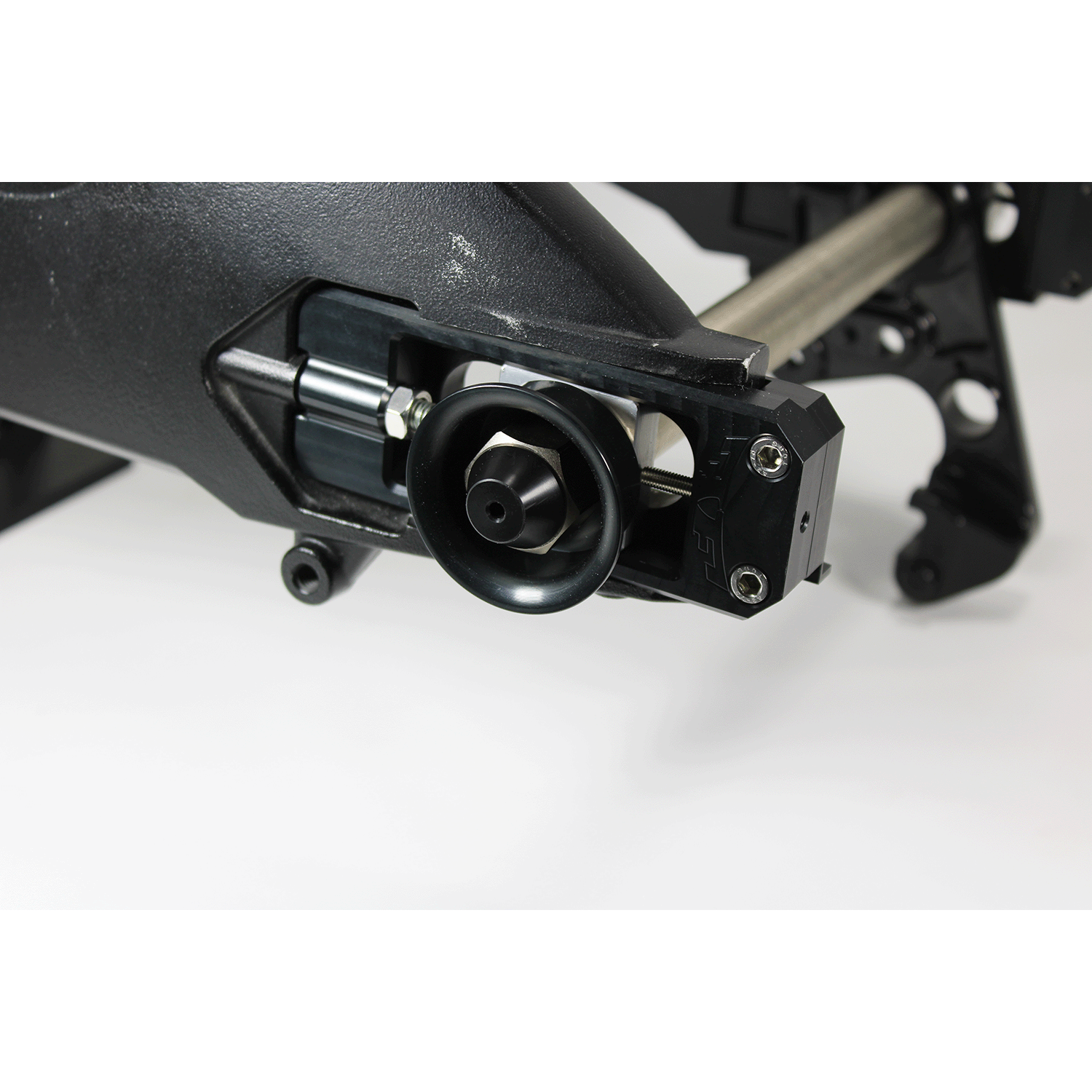

4. Axle Pull Cup

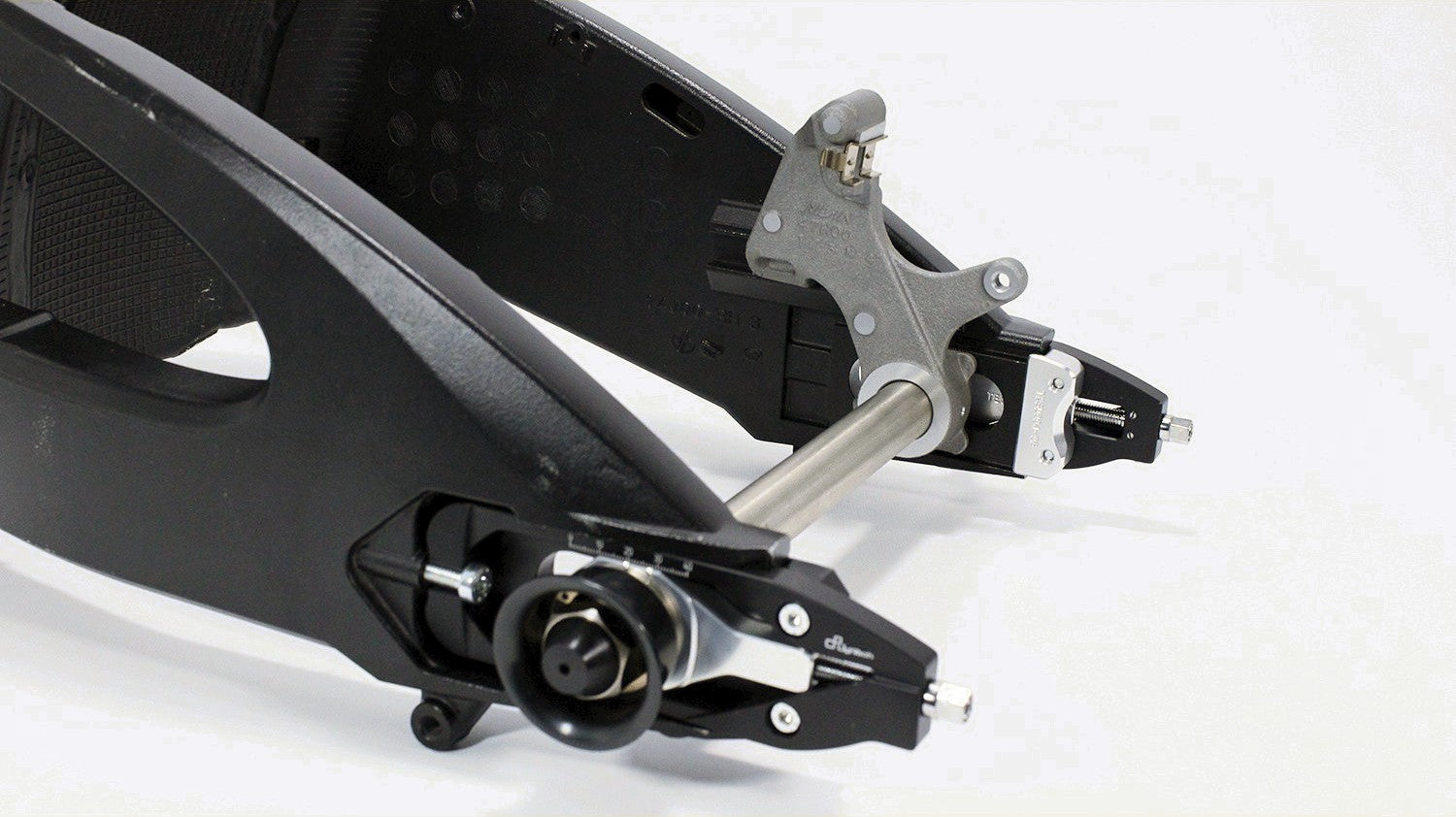

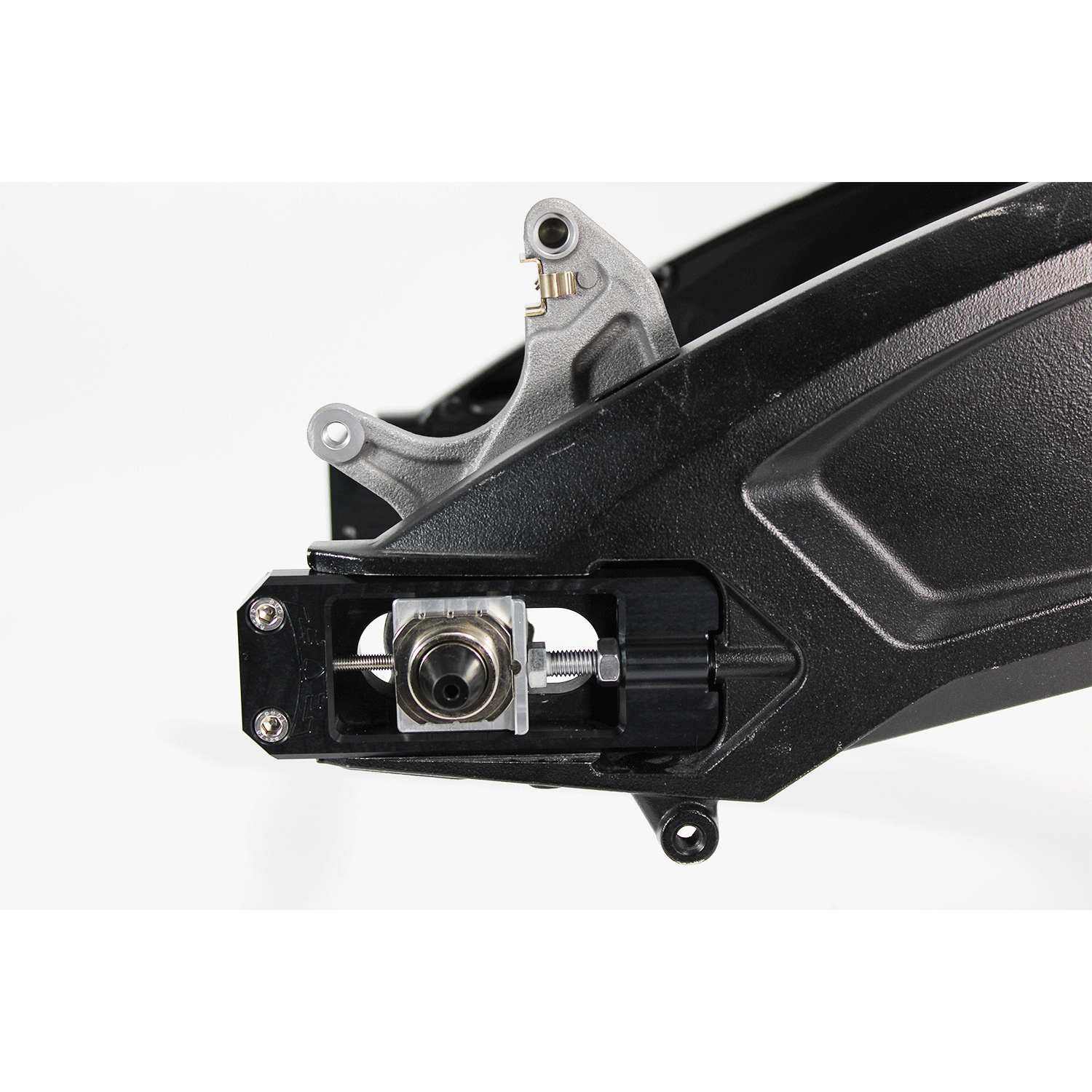

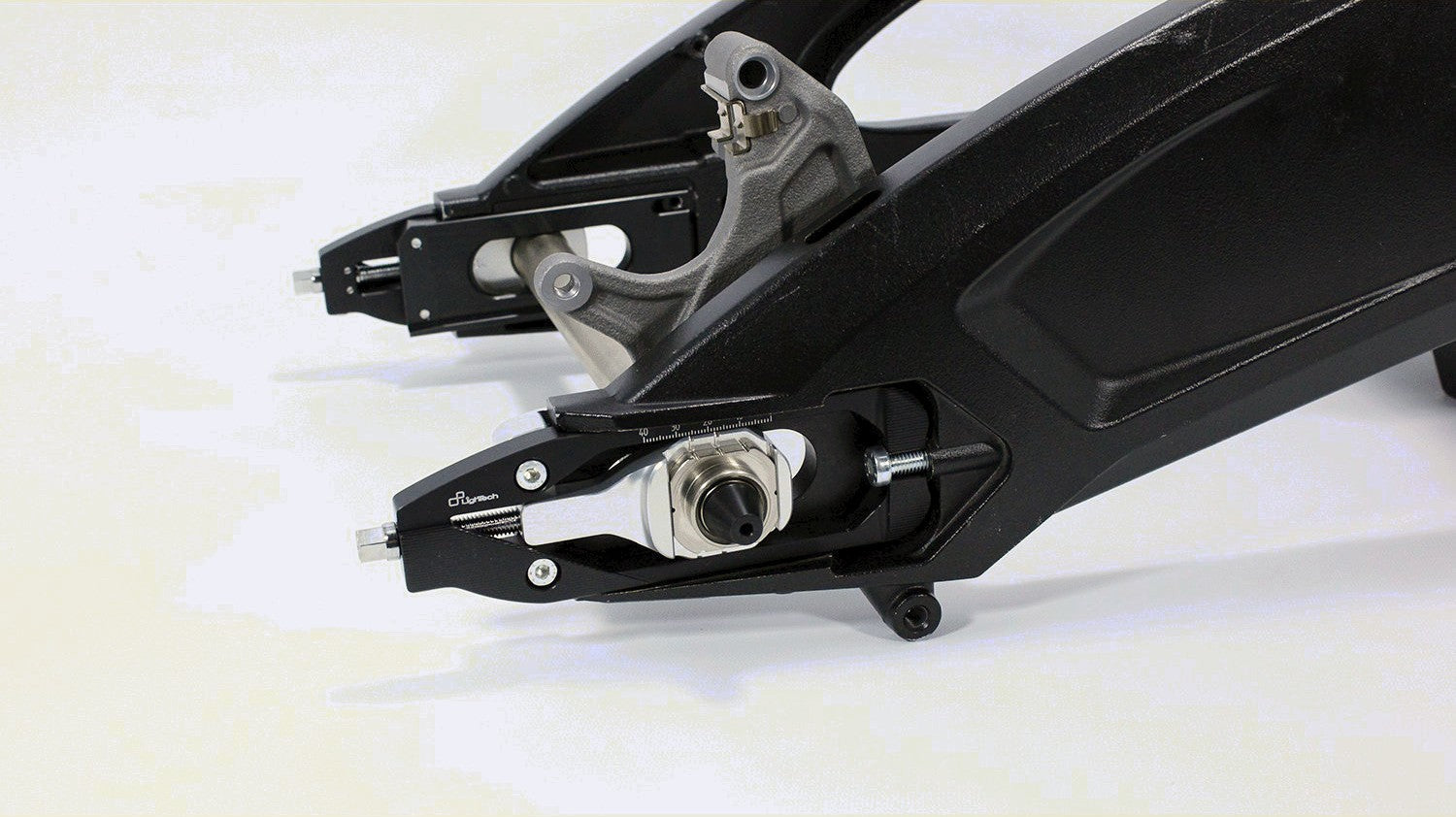

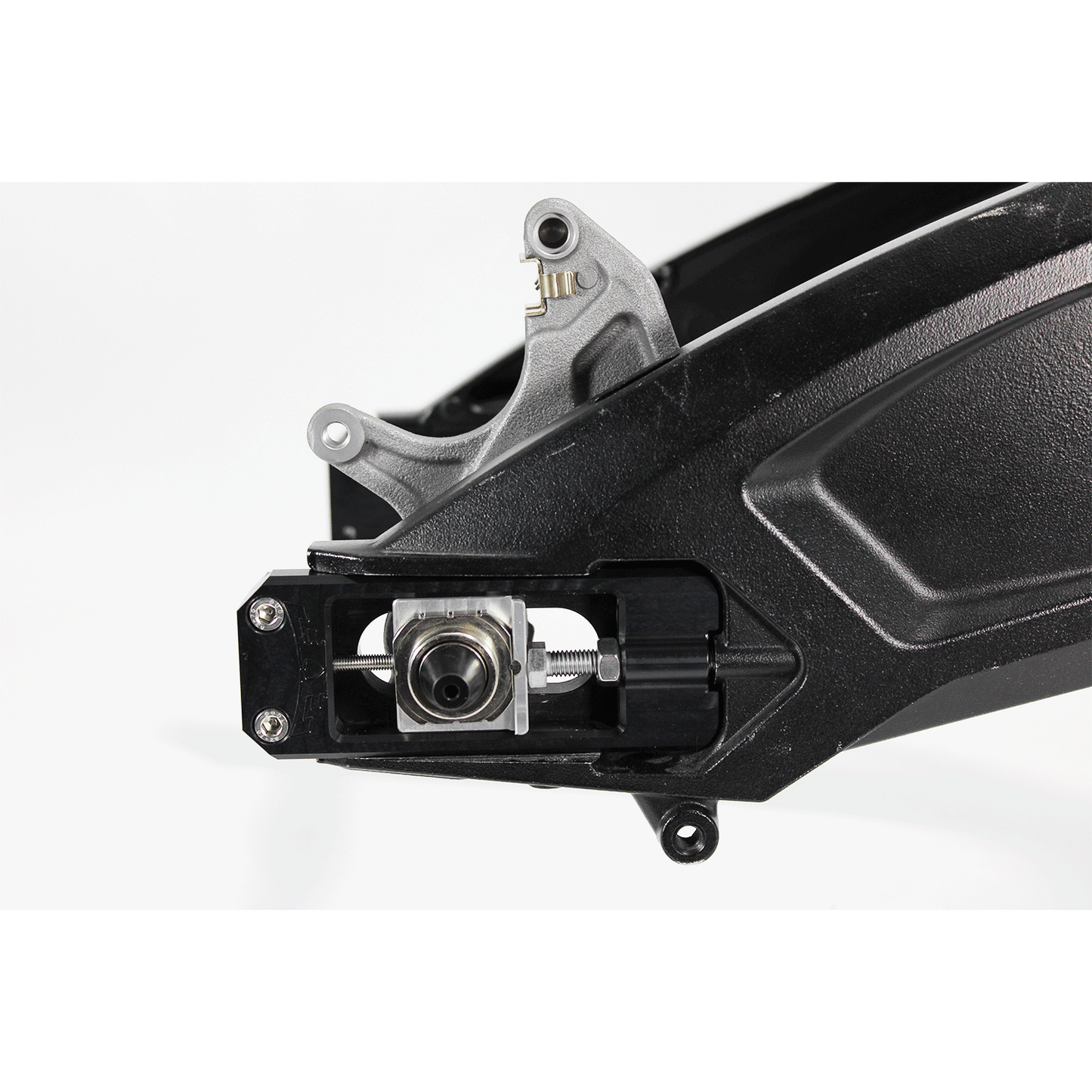

5. Captive Caliper Bracket (or optional Underslung Caliper Bracket)

6. Left-Side Lightech Wheel Ramp

7. Ramp Spacers (1 set included; additional sets available separately)

8. Detachable Axle Guides

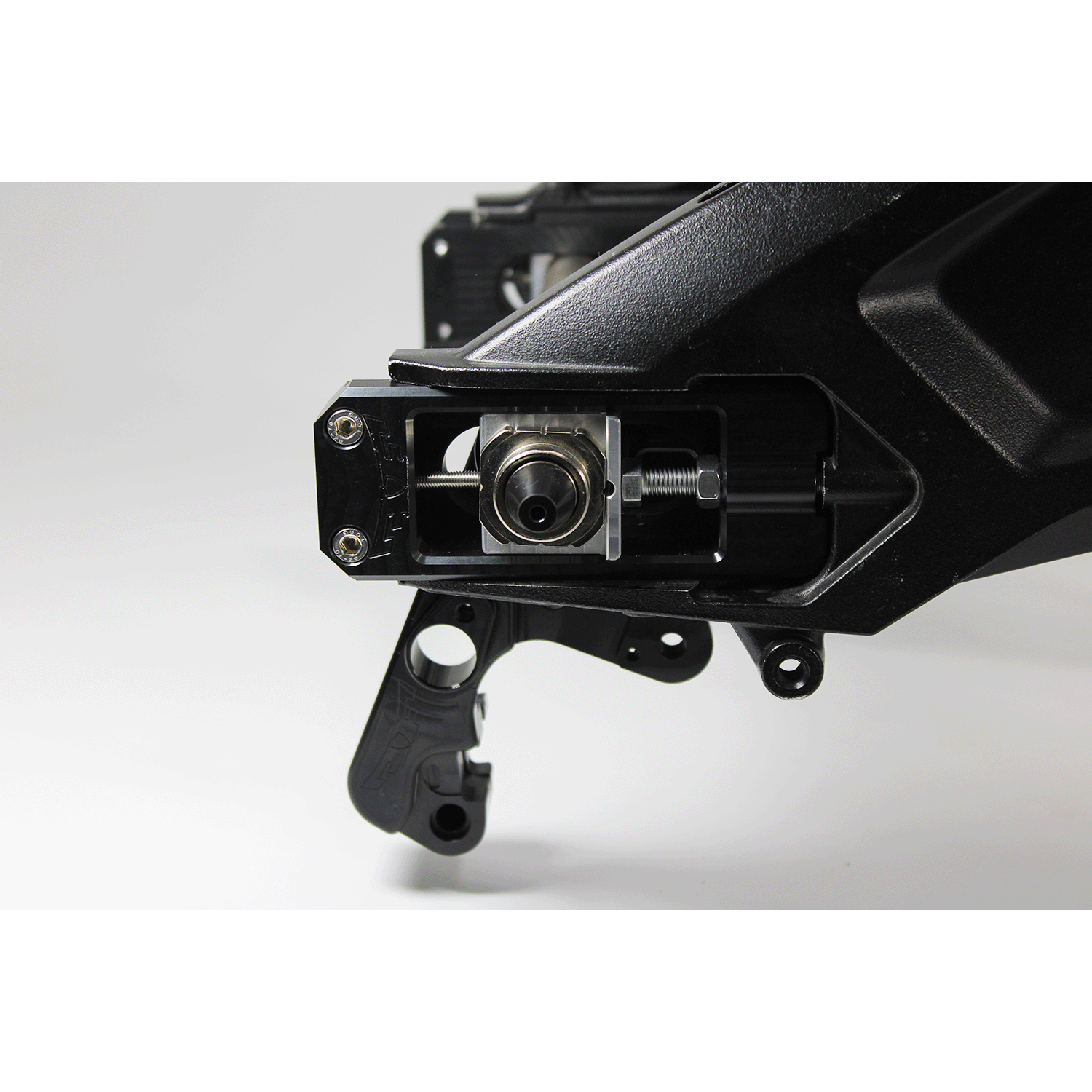

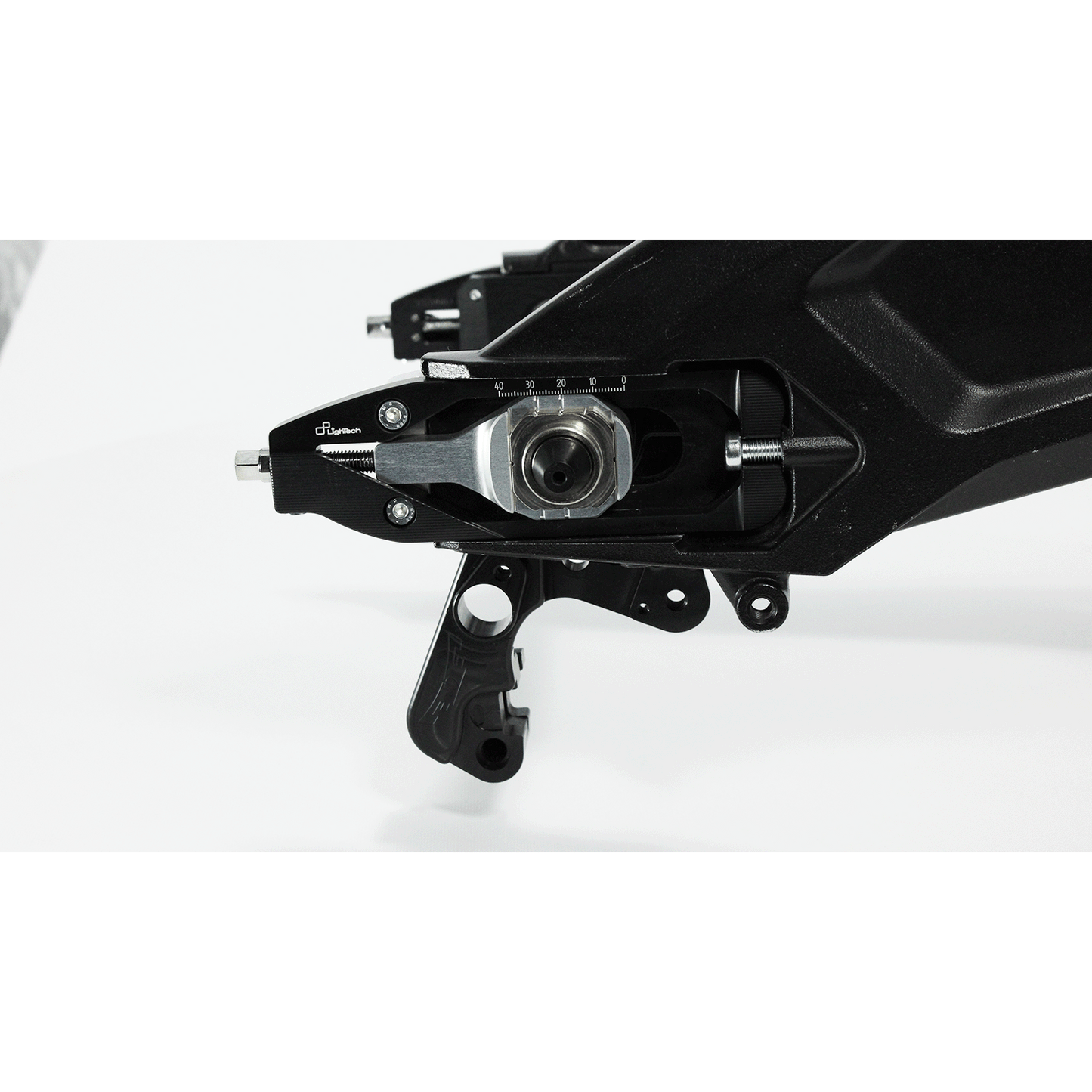

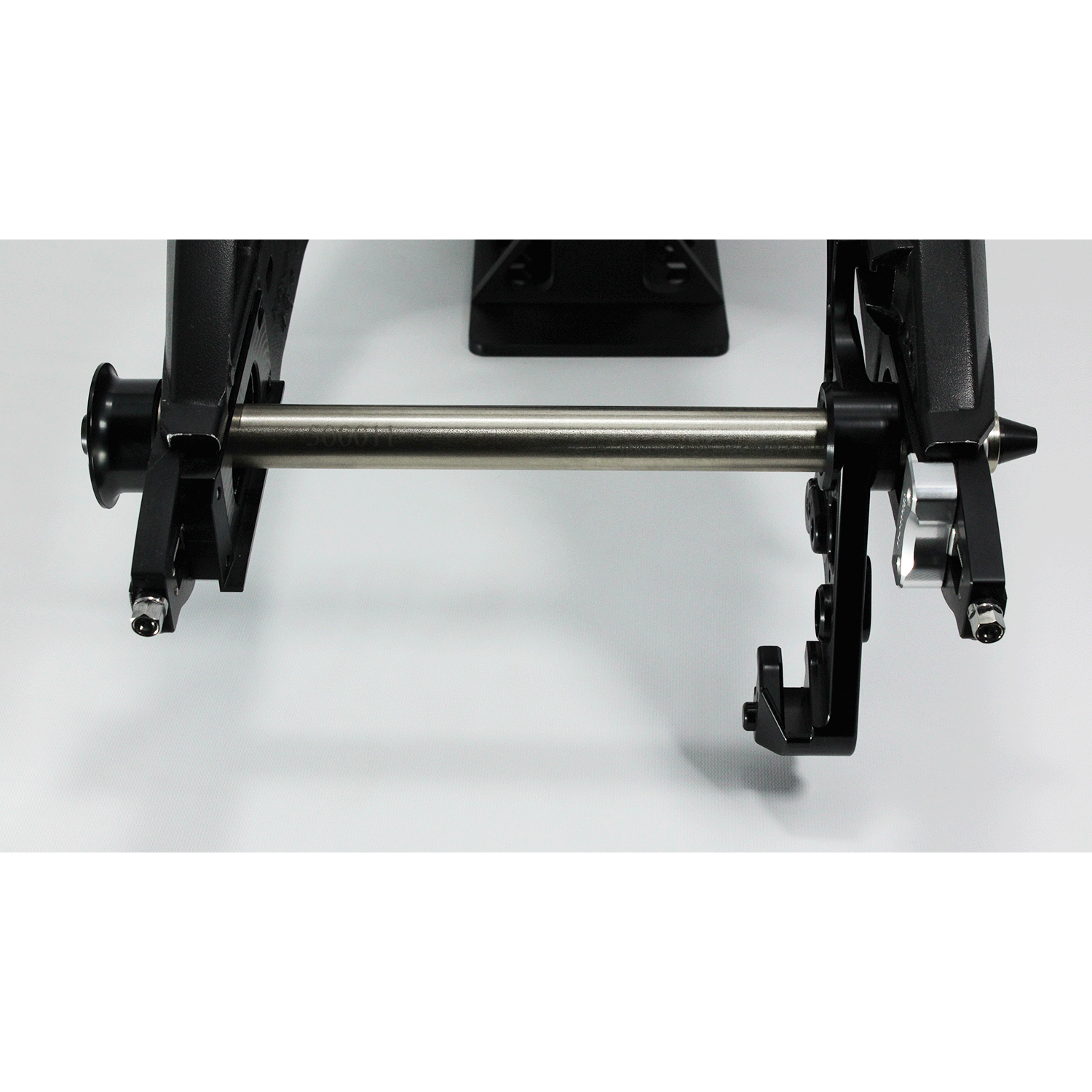

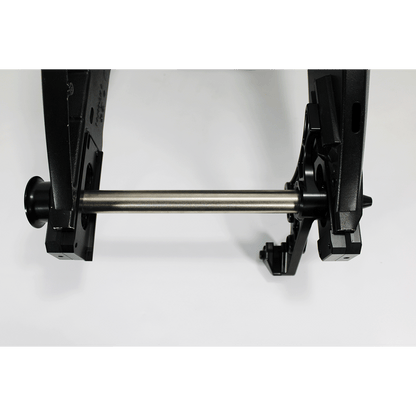

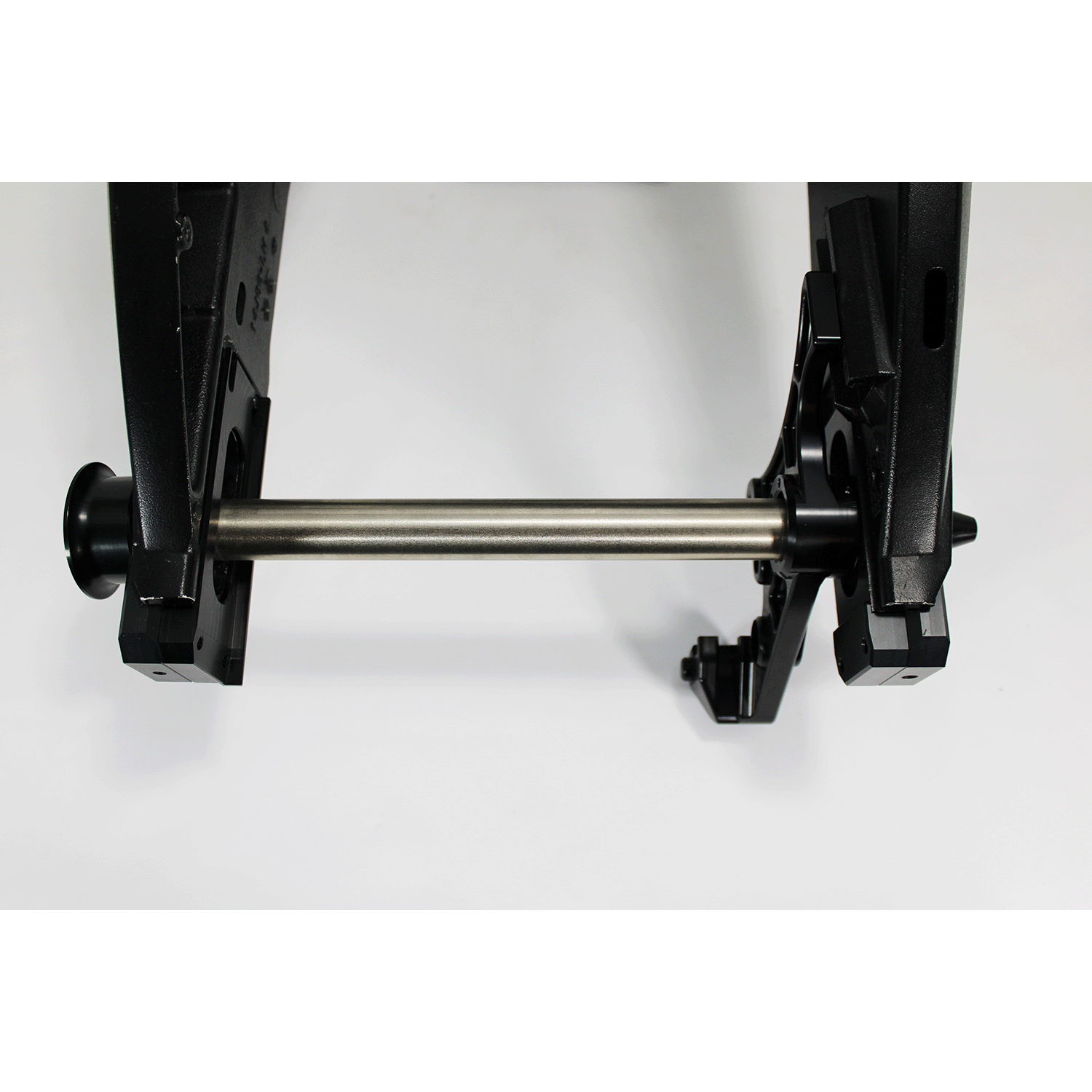

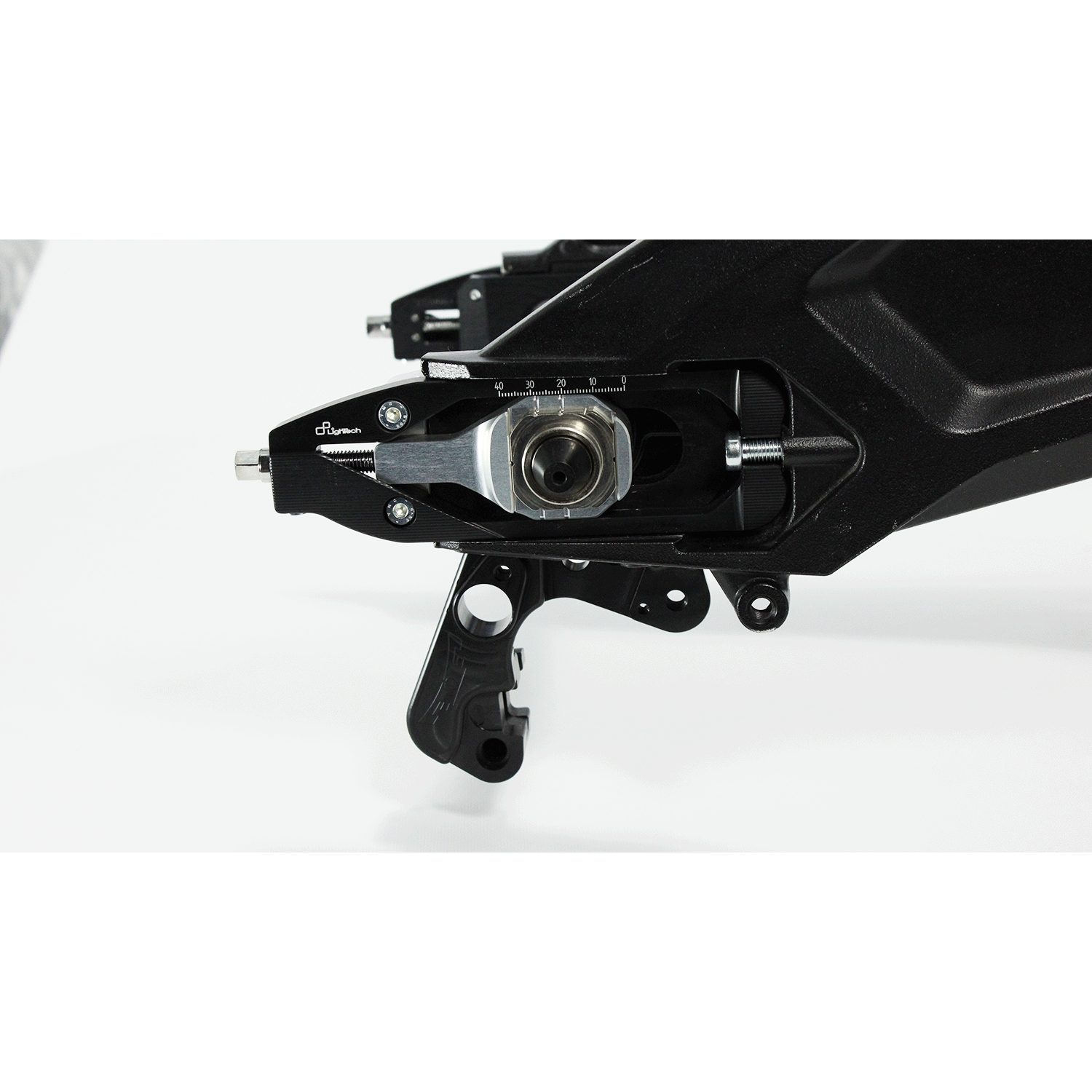

Optional Upgrade – Underslung Caliper Bracket

For even faster wheel changes, choose our Underslung Caliper Bracket, which uses the stock brake caliper and enhances accessibility during pit stops. (Underslung has a built in brake side wheel ramp)
This bracket requires a longer brake line.

TRS Transport-Ready

This kit is fully compatible with the Pit Bull TRS (Trailer Restraint System).
When used with our optional TRS pins (available separately), the LH axle with detachable axle guides allows you to secure your bike in the restraint system without reinstalling the OEM axle for transport.

If you do not have detachable axle guides, please contact us for options to upgrade your kit to the most up-to-date configuration.

Please see our 600/750 page for other compatible accessories

Quick change rear wheel kit for 2011 and Up GSXR 600 & 750

'World Super Sport Legal"

We  just redesigned this kit so that now the axle nut is what holds the caliper bracket captive to the swingarm, this design makes the caliper bracket much more rigid and is easier to install.

 A new addition to this kit is the Left side wheel Guide to hold the wheel in place  when the axle is removed, makes for even easier and faster wheel changes.
This New kit comes with, CRN Coated CNC  machined axle, axle pull cup, Lightech chain adjusters, captive axle nut, captive caliper bracket, wheel guide and 1 set of captive rear wheel spacers.

The left side spacer is different than stock so if you have captive spacers now the left one will need to be modified.

If  you are using a Pitbull trailer restraint system it will work with this quick change axle, but You will need to order a specific set from Pitbull, Use Part #25-320-V4
